X-Side Panel

  • 1″ thick X Side decorative panels are available as both open frame and with a plywood center panel.
  • The X Side overlay has numerous applications including: single panel wall and base end panel overlays, double panel upright refrigerator end panel overlays, and 2 and 3 panel side by side wainscot panel overlays.
  • Stiles, top rail and diagonal cross members are 3″ wide, bottom rail is 6″ wide. All exterior framing can be modified in width, but diagonal cross members are fixed at 3″ in width.

The cross section below shows how your door may look, but the profiles you select will affect the final look of your door.

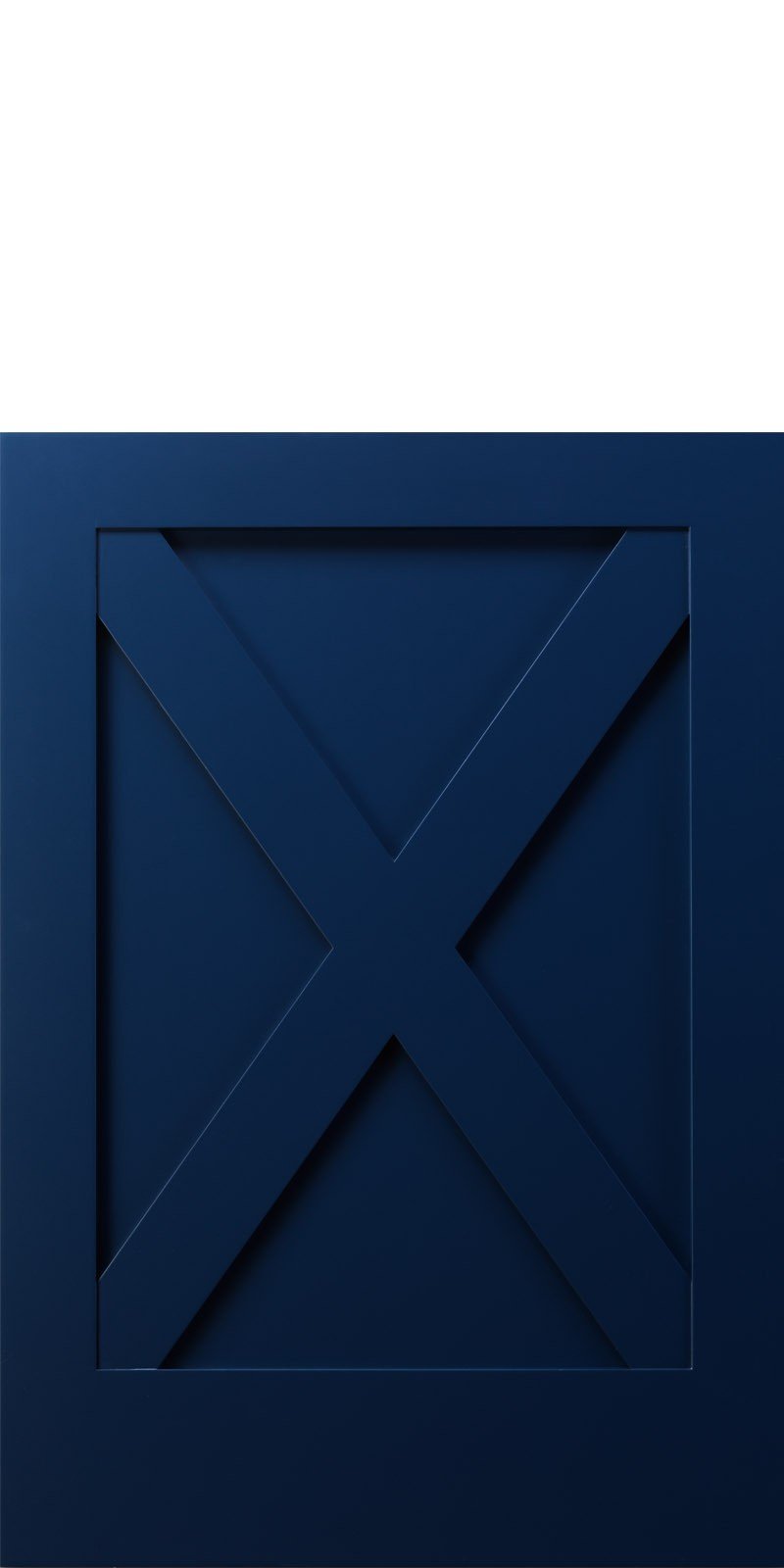

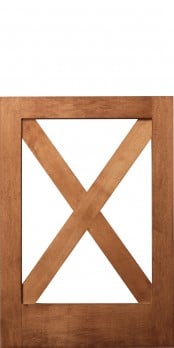

About the Picture: Shown with Regent Blue on Hickory.  (Colonial on Hard maple – open frame)

Get My Quote Get My Sample



Edge Profiles: All designs – all 1″ profiles available.
Framing Beads: All designs – design specific, no options available.
Panels Raises: All designs – 1/4″ veneered panel only.


Mullion/Frame only Doors: X Side Panel – frame only mullions not available. X Side Open – mullions not available.
Wainscot Panels: Yes
Pegs and Grooves: All options available except panel grooves.
Appliance Panels: Apply over plywood.
Door Frame Modifications: Yes
Hinges/Hinge Boring: Yes
