Base Cabinets - Standard Drawer Over Door

Standard base cabinets are the most popular cabinet in the kitchen. They are available with or without an upright center divider, and with single or double doors and drawers. These cabinets make a great storage addition and can be fitted with a variety of accessories. Check out our collection below!

  • Single Door Base Cabinet

    Single Door Base Cabinet

    CABINET CODE: B  (CSB will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B + width + height. (i.e. B1834.5 for an 18″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Standard Base cabinet, with a single door, and 1 drawer. (Note: when height is changed from standard 34.5″ H, the drawer opening remains fixed at 5″ H).

  • Butt Door Base Cabinet

    Butt Door Base Cabinet

    CABINET CODE: B_BD  (CSB will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B + width + height +BD. (i.e. B3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Standard Base cabinet, with Butt Doors, and 1 drawer. (Note: when height is changed from the standard 34.5″ H, the drawer opening remains fixed at 5″ H).

  • Double Door Base Cabinet with Single Drawer

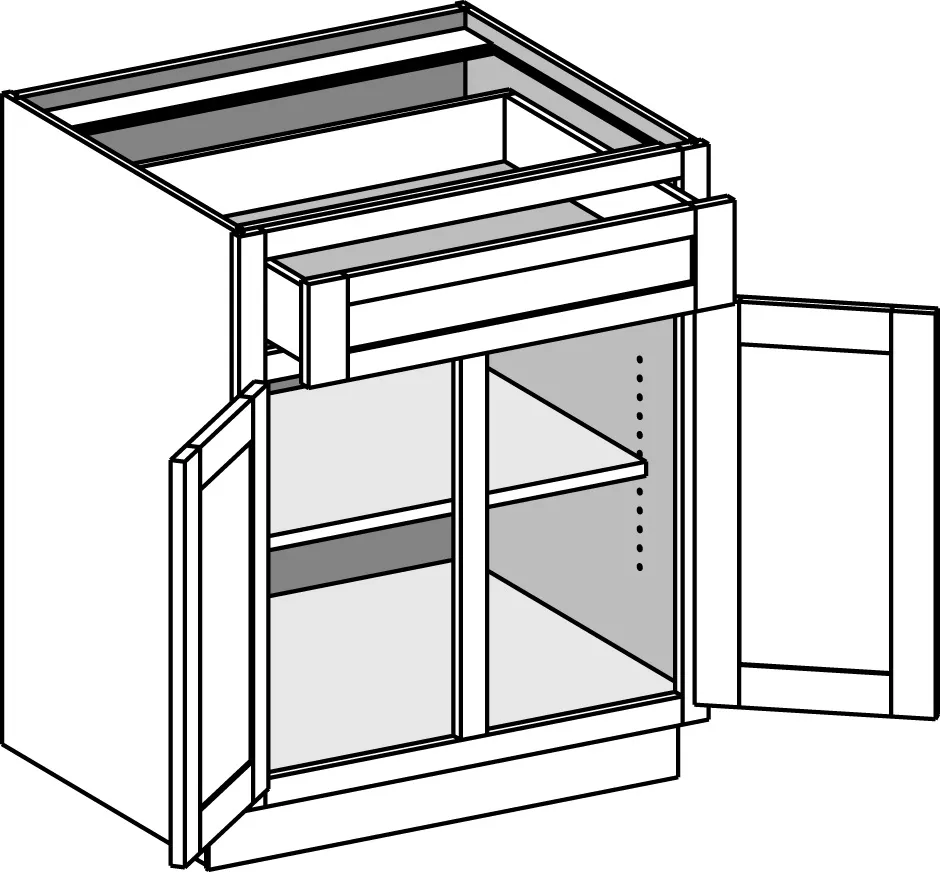

    Double Door Base Cabinet with Single Drawer

    CABINET CODE: B  (CSB2D1D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B + width + height. (i.e. B3634.5 for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Standard Base cabinet, with double doors, upright center divider, and 1 drawer. (Note: when height is changed from standard 34.5″ H, the drawer opening remains fixed at 5″ H).

  • Butt Door Base Cabinet w/ 2 Drawers

    Butt Door Base Cabinet w/ 2 Drawers

    CABINET CODE: B_BD2D  (CSBBD2D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B + width + height + BD2D. (i.e. B3034.5BD2D for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Standard Base cabinet, with Butt Doors, and 2 drawers separated by an upright center divider. (Note: when height is changed from standard 34.5″ H, the drawer opening remains fixed at 5″ H). IMPORTANT NOTE: Drawer fronts will not align with doors on full overlay applications (drawer fronts will have a 1/2″ gap while doors will butt together, meaning doors will be wider than drawer fronts).

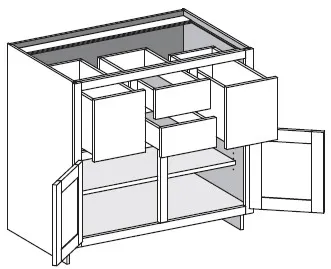

  • Double Door/Drawer Base Cabinet

    Double Door/Drawer Base Cabinet

    CABINET CODE: B  (CSB2D2D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B + width + height. (i.e. B4234.5 for a 42″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Standard Base cabinet, with double doors, upright center divider, and 2 drawers. (Note: when height is changed from standard 34.5″ H, the drawer opening remains fixed at 5″ H).

  • Base Cabinet – 3 Door/3 Drawer

    Base Cabinet – 3 Door/3 Drawer

    CABINET CODE: B  (CSB3D3D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 48″ to 72″ in 1/16″ increments
    Height: 31.5″ to 42″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B + width + height. (i.e. B6034.5 for a 60″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 3 drawers, over 3 doors. (Note: middle door/drawer are 1/2″ overlay (left to right) and the door will use a 1/2″ overlay hinge).

  • Base Cabinet - Base w/ Trash Can Pull-Out

    Base Cabinet - Base w/ Trash Can Pull-Out

    CABINET CODE: BTCP  (CSBTCP will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 18″ to 27″ in 1/16″ increments
    Height: 31.5″ to 34.5″  in 1/16″ increments
    Depth: 24″

    TO ORDER: Indicate BTCP + width + height. (i.e. BTCP2134.5 for a 21″ W x 34.5″ H cabinet).

    DESCRIPTION: Base cabinet with options for single, double, or no trash can cutouts. Units 18″- 23-15/16″ will have one 35 quart can, 24″-27″ two 35 quart cans

Base Cabinets – Sink

Sink cabinets are a critical aspect of any kitchen design. We offer a huge selection of sink cabinets including Farmer sink (apron sink) cabinets. These cabinets are also used for drop in cook tops.

  • Sink Base Cabinet w/Butt Doors

    Sink Base Cabinet w/Butt Doors

    CABINET CODE: BS_BD  (CSBS will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BS + width + height + BD. (i.e. BS3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with Butt doors, false drawer front, and no shelf.

  • Sink Base Cabinet w/ Double Doors, Single Drawer

    Sink Base Cabinet w/ Double Doors, Single Drawer

    CABINET CODE: BS  (CSBS2D1D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BS + width + height. (i.e. BS3034.5 for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with double doors, upright center divider, false drawer front, and no shelf.

  • Sink Base Cabinet w/Double Doors

    Sink Base Cabinet w/Double Doors

    CABINET CODE: BS  (CSBS2D2D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BS + width + height. (i.e. BS4234.5 for a 42″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with double doors, upright center divider, 2 false drawer fronts, and no shelf.

  • Apron (Farm) Sink Cabinet w/Butt Doors

    Apron (Farm) Sink Cabinet w/Butt Doors

    CABINET CODE: ASB_BD  (CSASB will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate ASB + width + height +BD. (i.e. ASB3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Apron (farm sink) Base cabinet, with Butt doors, and no shelf. (Note: factory sink bowl opening is 5″ H by 6″ less than the cabinet’s width). The sink opening is meant to be field trimmable to meet your sink’s cut out spec. (Note: custom sink cut outs are NOT available from the factory. They MUST be field cut by the installer)! The sink opening is trimmable 4.5″ in height and 3″ in width. (Note: when height is changed from standard 34.5″ H, the lower door opening section changes). To accommodate a sink that will not work with these cut out limits, please contact us for a quote on a custom face frame. (IMPORTANT NOTE: sink supports are NOT included with this cabinet)!

  • Apron (Farm) Sink Cabinet w/Double Doors

    Apron (Farm) Sink Cabinet w/Double Doors

    CABINET CODE: ASB  (CSASB will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate ASB + width + height. (i.e. ASB4234.5BD for a 42″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Apron (farm sink) Base cabinet, with  double doors, upright center divider, and no shelf. (Note: sink bowl opening is 5″ H by 6″ less than the cabinet’s width). The sink opening is meant to be field trimmable to meet your sink’s cut out spec. (Note: custom sink cut outs are NOT available from the factory. They MUST be field cut by the installer)! The sink opening is trimmable 4.5″ in height and 3″ in width. (Note: when height is changed from standard 34.5″ H, the lower door opening section changes). To accommodate a sink that will not work with these cut out limits, please contact us for a quote on a custom face frame. (IMPORTANT NOTE: sink supports are NOT included with this cabinet)!

  • Base Sink Full Door w/Butt Doors

    Base Sink Full Door w/Butt Doors

    CABINET CODE: BSFD_BD  (CSBSFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BSFD + width + height + BD. (i.e. BSFD3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with full height butt doors and no shelf. Note: For inset cabinets, sink panel will need to be modified by customer to clear inset hinges

Base Cabinets – Full Door

Full door cabinets are versatile. When fitted with pull out trays, they serve as a base pantry. Or they serve as built in under-counter oven cabinets by simply deleting the doors. Take a look at our collection below and check out the details of each cabinet.

  • Base Full Door Cabinet w/ Single Door

    Base Full Door Cabinet w/ Single Door

    CABINET CODE: BFD  (CSBFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 9″ to 24″ in 1/16″ increments
    Height: 10″ to 48″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BFD + width + height. (i.e. BFD0934.5 for a 9″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with a full single door, and no drawer. The 9″ W version is ideal for a tray base application. (Note: all cabinets include 2 shelves, EXCEPT the 9″ W cabinet, which doesn’t include any shelves).

  • Base Full Door Cabinet w/Butt Doors

    Base Full Door Cabinet w/Butt Doors

    CABINET CODE: BFD_BD  (CSBFDBD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 10″ to 48″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BFD + width + height + BD. (i.e. BFD3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with full Butt doors, and no drawer.

  • Base Full Door Cabinet w/Double Doors

    Base Full Door Cabinet w/Double Doors

    CABINET CODE: BFD  (CSBFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 48″ in 1/16″ increments
    Height: 10″ to 48″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BFD + width + height. (i.e. BFD3034.5 for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with full double doors, upright center divider, and no drawer.

  • Base Full Door w/Two Center

    Base Full Door w/Two Center

    CABINET CODE: BFD  (CSBFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 48″ to 72″ in 1/16″ increments
    Height: 10″ to 48″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BFD + width + height. (i.e. BFD6034.5 for a 60″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with three full doors, two upright center dividers, and no drawer.

  • Base Full Door w Single Door & /Roll Outs

    Base Full Door w Single Door & /Roll Outs

    CABINET CODE: BFDRO(i)  (CSBFDRO(i) will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized). The “i” denotes inset as a different drawer box width is required to accommodate the inset hinge.

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments (inset: 15″ to 24″ in 1/16″ increments)
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″ or 30″ only.

    TO ORDER: Indicate BFDRO + width + height. (i.e. BFDRO3034.5 for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. Roll-out drawers include hand pulls. Specify Standard top rout, Circle or Ellipse pull (shown).

    DESCRIPTION: Base cabinet with single full door and 4 roll outs behind the door. The roll out trays are all 5″ high. Interior panels are predrilled for drawer slide placement and installation.

  • Base Full Door w Butt Doors & /Roll Outs

    Base Full Door w Butt Doors & /Roll Outs

    CABINET CODE: BFDRO(i)BD  (CSBFDRO(i)BD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized). The “i” denotes inset as a different drawer box width is required to accommodate the inset hinge.

    SIZES:
    Width:  24″  to 36″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″ or 30″ only.

    TO ORDER: Indicate BFDROBD + width + height + BD. (i.e. BFDRO3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. Roll-out drawers include hand pulls. Specify Standard top rout, Circle or Ellipse pull (shown).

    DESCRIPTION: Base cabinet with single full door and 4 roll outs behind the door. The roll out trays are all 5″ high. Interior panels are predrilled for drawer slide placement and installation.

Base Cabinets – Drawer Base

We offer drawer base cabinets with 1, 2, 3, 4 or 5 drawers, which allow you the flexibility you need to create ideal storage solutions for your kitchen. Check out our offering below and download the full catalog to see all of your options!

  • Base Cabinet – 2 Drawer

    Base Cabinet – 2 Drawer

    CABINET CODE: B2D  (CSB2D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B2D + width + height. (i.e. B2D2434.5 for a 24″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 2 equal height drawers. (Note: when height is changed from standard 34.5″ H, the drawer openings remain equal).

  • Base 2 Drawer with Roll Outs

    Base 2 Drawer with Roll Outs

    CABINET CODE: B2DRO  (CSB2DRO will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B2DRO + width + height. (i.e. B2DRO2434.5 for a 24″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. Roll outs include hand pull cutout. Specify Standard top rout hand pull, circle hole or ellipse hole in special instructions. Standard top rout will be used unless specified.

    DESCRIPTION: Base cabinet with 2 drawers and roll-outs hidden above each. (Note: when height is changed from standard 34.5″ H, both drawers will remain equal).

  • Base Cabinet – 3 Drawer

    Base Cabinet – 3 Drawer

    CABINET CODE: B3D  (CSB3D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B3D + width + height. (i.e. B3D2434.5 for a 24″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 3 drawers. (Note: when height is changed from standard 34.5″, only the lower opening height changes. Upper two opening heights remain fixed at 5″ H and 8″ H respectively).

  • Base 3 Drawer – Equal Height Bottom Drawers

    Base 3 Drawer – Equal Height Bottom Drawers

    CABINET CODE: B3DEH  (CSB3DEH will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B3DEH + width + height. (i.e. B3DEH2434.5 for a 24″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 3 drawers. Bottom 2 drawers are equal height (9.75″ H openings on standard 34.5″ H cabinet). (Note: when height is changed from standard 34.5″ H, only the lower openings height changes. Upper drawer opening remains fixed at 5″ H).

  • Base Cabinet – 4 Drawers

    Base Cabinet – 4 Drawers

    CABINET CODE: B4D  (CSB4D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B4D + width + height. (i.e. B3D2434.5 for a 24″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 4 drawers. (Note: when height is changed from standard 34.5″ H, only lower opening height changes. Upper three opening heights remain fixed at 5″ H).

  • Base 4 Drawer w/ Split Top Drawers, Equal Height Bottom Drawers

    Base 4 Drawer w/ Split Top Drawers, Equal Height Bottom Drawers

    CABINET CODE: B4D2S2EH  (CSB4D2S2EH will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B4D2S2EH + width + height. (i.e. B4D2S2EH3634.5 for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 4 drawers. Bottom 2 drawers are equal height (9.75″ H openings on standard 34.5″ H cabinet). Top 2 drawers are equal width. (Note: when height is changed from standard 34.5″ H, only the lower openings height changes. Upper drawer openings remain fixed at 5″ H).

  • Drawer Base – Double Drawer w/Divider

    Drawer Base – Double Drawer w/Divider

    CABINET CODE: B1DCS  (CSB1DCS will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 48″ in 1/16″ increments
    Height: 12″ to 21″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B1DCS + width + height. (i.e. B1DCS4221 for a 42″ W x 21″ H cabinet). If depth other than standard 24″ D, or height other than standard 21″H is required, then note as special instruction.

    DESCRIPTION: Base cabinet, with 2 drawers.

  • Drawer Base – Single Drawer

    Drawer Base – Single Drawer

    CABINET CODE: B1D  (CSB1D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ to 36″ in 1/16″ increments
    Height: 12″ to 21″  in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ Only.

    TO ORDER: Indicate B1D + width + height. (i.e. B1D2421 for a 24″ W x 21″ H cabinet). If depth other than standard 24″ D, or height other than standard 21″ H, is required, then note as special instruction.

    DESCRIPTION: Base cabinet, with 1 drawer.

Base Cabinets – Corner Base

Our corner base offering includes blind corner, diagonal corner, and pie cut corner cabinet options. We also offer an assortment of interior storage options.

  • Base Cabinet – Corner Pie Cut

    Base Cabinet – Corner Pie Cut

    CABINET CODE: BCP  (CSBCP will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 33″ to 42″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 33″ to 42″ in 1/16″ increments

    TO ORDER: Indicate BCP + Left leg width + Right leg width + height. (i.e. BCP333634.5 for a 33″ W Left leg x 36″ W Right leg x 34.5″ H cabinet).

    DESCRIPTION: Corner, pie cut cabinet. (Note: Susans are NOT included, but may be added to this cabinet – See interior storage options). A soss hinge is included for joining the doors together. (Note: some door designs do not allow for soss hinge borings. In those cases, customers will need to source their own solution for joining the doors. We recommend a Salice hinge, available at www.rockler.com, for joining the doors). Please note that the depth remains 24″ even as the size changes. The pie cut area is what gets larger/smaller. Also, please note the minimum clearance width, in halls and doorways, to accommodate a BCP36 is 35″ W.

  • Base Corner – Diagonal, Full Door

    Base Corner – Diagonal, Full Door

    CABINET CODE: BCFD (CSBCFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ Only
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 36″ Only

    TO ORDER: Indicate BCFD + width + height. (i.e. BCFD3634.5 for a 36″ W x 36″ W x 34.5″ H cabinet).

    DESCRIPTION: Diagonal, full door, corner cabinet. (Note: Susans are NOT included, but may be added to this cabinet – See interior storage options). Also please note, the minimum clearance width, in halls and doorways, to accommodate this cabinet is 35″ W.

  • Base Sink Corner Cabinet

    Base Sink Corner Cabinet

    CABINET CODE: BSC (CSBSC will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ Only
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 36″ Only

    TO ORDER: Indicate BSC + width + height. (i.e. BSC3634.5 for a 36″ W x 36″ W x 34.5″ H cabinet).

    DESCRIPTION: Diagonal corner cabinet, with door, false drawer front, and NO shelf. Please note, the minimum clearance width, in halls and doorways, to accommodate this cabinet is 35″ W.

  • Base Corner Pie Cut 3 Drawer

    Base Corner Pie Cut 3 Drawer

    CABINET CODE: BCP3D (CSBCP3D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 39″, 42″ Only
    Height: 31.5″ to 34.5″ in 1/16″ increments
    Depth: 39″ and 42″ Only

    TO ORDER: Indicate BCP3D + width + height. (i.e. BCP3D3934.5 for a 39″ W x 34.5″ H cabinet).

    DESCRIPTION: Base Pie Cut Corner Cabinet with 3 drawers. (IMPORTANT NOTE: These cabinets are more complex to build than other corner cabinets. Please refer to the assembly video on website and be sure to clarify with your Cabinet Coach before ordering. NOT AVAILABLE with inset applications. NOT AVAILABLE with mitered drawer fronts. Customizable in Height only. When height changes, only lower opening changes. Separate toe platform is standard so that the cabinet can pass through doorways. A minimum door opening width of 35″ is required or cabinet will need to be assembled in its final room.

  • Base Blind Corner Cabinet Left

    Base Blind Corner Cabinet Left

    CABINET CODE: BBCL (CSBBCL will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″ and 30″ only.

    TO ORDER: Indicate BBCL + width + height. (i.e. BBCR3934.5 for a 39″ W x 34.5″ H cabinet). Specify the functional area (between 12″ and 21″). This will determine your blind opening area. Upright center stile is always 6″

    DESCRIPTION: Blind corner cabinet with the blind area on the LEFT side. Overall cabinet size is the actual width specified (NOTE: this is different than Conestoga’s old BBC cabinet where it was pulled from the corner. If you need to pull the cabinet from corner to provide space, you must calculate the cabinet size you need and order the cabinet in that size). full overlay cabinets use 1/2″ overlay hinges! Minimum exposed blind amount is 2.5″ to allow for adequate clearance for adjacent door/drawer front function. Excessive projection of hardware may require a greater blind area. Design and install accordingly and be careful of properly engineering clearance around appliances as they project more than cabinets will!

  • Blind Corner Cabinet Right

    Blind Corner Cabinet Right

    CABINET CODE: BBCR (CSBBCR will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″ and 30″ only.

    TO ORDER: Indicate BBCR + width + height. (i.e. BBCR3934.5 for a 39″ W x 34.5″ H cabinet). Specify the functional area (between 12″ and 21″). This will determine your blind opening area. Upright center stile is always 6″

    DESCRIPTION: Blind corner cabinet with the blind area on the RIGHT side. Overall cabinet size is the actual width specified (NOTE: this is different than Conestoga’s old BBC cabinet where it was pulled from the corner. If you need to pull the cabinet from corner to provide space, you must calculate the cabinet size you need and order the cabinet in that size). full overlay cabinets use 1/2″ overlay hinges! Minimum exposed blind amount is 2.5″ to allow for adequate clearance for adjacent door/drawer front function. Excessive projection of hardware may require a greater blind area. Design and install accordingly and be careful of properly engineering clearance around appliances as they project more than cabinets will!

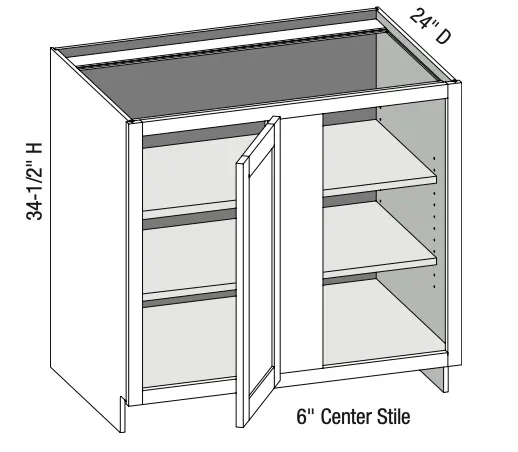

  • Base Full Door Blind Corner Cabinet Right

    Base Full Door Blind Corner Cabinet Right

    CABINET CODE: BFDBCR (CSBFDBCR will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BFDBCR + width + height. (i.e. BFDBCR3934.5 for a 39″ W x 34.5″ H cabinet). Specify the functional area (between 12″ and 21″). This will determine your blind opening area. Upright center stile is always 6″

    DESCRIPTION: Blind corner cabinet with the blind area on the RIGHT side. Overall cabinet size is the actual width specified (NOTE: this is different than Conestoga’s old BBC cabinet where it was pulled from the corner. If you need to pull the cabinet from corner to provide space, you must calculate the cabinet size you need and order the cabinet in that size). full overlay cabinets use 1/2″ overlay hinges! Minimum exposed blind amount is 2.5″ to allow for adequate clearance for adjacent door/drawer front function. Excessive projection of hardware may require a greater blind area. Design and install accordingly and be careful of properly engineering clearance around appliances as they project more than cabinets will!

  • Base Full Door Blind Corner Cabinet Left

    Base Full Door Blind Corner Cabinet Left

    CABINET CODE: BFDBCL (CSBFDBCL will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BFDBCL + width + height. (i.e. BFDBCL3934.5 for a 39″ W x 34.5″ H cabinet). Specify the functional area (between 12″ and 21″). This will determine your blind opening area. Upright center stile is always 6″

    DESCRIPTION: Blind corner cabinet with the blind area on the LEFT side. Overall cabinet size is the actual width specified (NOTE: this is different than Conestoga’s old BBC cabinet where it was pulled from the corner. If you need to pull the cabinet from corner to provide space, you must calculate the cabinet size you need and order the cabinet in that size). full overlay cabinets use 1/2″ overlay hinges! Minimum exposed blind amount is 2.5″ to allow for adequate clearance for adjacent door/drawer front function. Excessive projection of hardware may require a greater blind area. Design and install accordingly and be careful of properly engineering clearance around appliances as they project more than cabinets will!

Base Cabinets – Angled/End of Run

Transition cabinets allow you to soften the hard edges of your kitchen, add interesting elements to your design, smooth the transition from deep cabinets to shallow, or just create a more open feel. Take a look at our offering below.

  • Base Angle End Cabinet

    Base Angle End Cabinet

    CABINET CODE: BAE  (CSBAE will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ Only
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 24″ Only

    TO ORDER: Indicate BAE + width + height. (i.e. BAE2434.5  for a 24″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Double angle cabinet, intended to act as ‘end of run’ cabinet, to soften hard edges. Perfect near doorways by allowing cleaner ingress/egress.

  • Base End Angle (Left/Right) Cabinet

    Base End Angle (Left/Right) Cabinet

    CABINET CODE: BEA(L/R)  (CSBEA(L/R) will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 12″ Only
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 24″ Only

    TO ORDER: Indicate BEAL or R + width + height. (i.e. BEAL2434.5  for a left angled, 24″ W x 34.5″ H cabinet).

    DESCRIPTION: Angle cabinet, intended to act as ‘end of run’ cabinet, to soften hard edges. Perfect near doorways by allowing cleaner ingress/egress.

Base Cabinets - Shallow

Shallow Base Cabinets are ideal on the back of islands and peninsulas, or with doors deleted and the matching interior option selected, as an open base bookcase. Check out our selection below.

  • Base Full Door Cabinet – Wall Depth, Double Doors

    Base Full Door Cabinet – Wall Depth, Double Doors

    CABINET CODE: BWD  (CSBFDCS will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 48″ in 1/16″ increments
    Height: 10″ to 48″  in 1/16″ increments
    Depth: 5.5″ to 12.5″ in 1/16″ increments

    TO ORDER: Indicate BWD + width + height. (i.e. BWD3034.5 for a 30″ W x 34.5″ H cabinet). If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with full doors, and upright center divider. (Note: heights 10″ to 22″ H get no shelves. Heights 22-1/16″ to 28″ H get 1 shelf. Heights 28-1/16″ to 40″ H get 2 shelves. Heights over 40″ H get 3 shelves).

  • Base Full Door Cabinet – Wall Depth, Butt Doors

    Base Full Door Cabinet – Wall Depth, Butt Doors

    CABINET CODE: BWD_BD  (CSBFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 10″ to 48″  in 1/16″ increments
    Depth: 5.5″ to 12.5″ in 1/16″ increments

    TO ORDER: Indicate BWD + width + height +BD. (i.e. BWD3034.5BD for a 30″ W x 34.5″ H cabinet). If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with Butt doors. (Note: heights 10″ to 22″ H get no shelves. Heights 22-1/16″ to 28″ get 1 shelf. Heights 28-1/16″ to 40″ get 2 shelves. Heights over 40″ get 3 shelves).

  • Base Full Door Cabinet – Wall Depth, Single Door

    Base Full Door Cabinet – Wall Depth, Single Door

    CABINET CODE: BWD  (CSBFD will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 9″ to 24″ in 1/16″ increments
    Height: 10″ to 48″  in 1/16″ increments
    Depth: 5.5″ to 12.5″ in 1/16″ increments

    TO ORDER: Indicate BWD + width + height. (i.e. BWD1834.5 for a 18″ W x 34.5″ H cabinet). If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with full door. (Note: heights 10″ to 22″ H get no shelves. Heights 22-1/16″ to 28″ get 1 shelf. Heights 28-1/16″ to 40″ H get 2 shelves. Heights over 40″ H get 3 shelves).

Base Cabinets – Double Entry (2 Sided)

Double entry cabinets create valuable storage for islands and peninsulas where access from both sides of the cabinet is critical. Browse our selection below and click a cabinet to see its full details.

  • Base Double Entry w/Butt Doors, Single Drawer

    Base Double Entry w/Butt Doors, Single Drawer

    CABINET CODE: BDE_BD  (CSBDE will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only. (Note: 12″, 15″, 27″, and 30″ deep available with Blum Tandem soft close drawer glides ONLY).

    TO ORDER: Indicate BDE + width + height +BD. (i.e. BDE3034.5BD  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. (Note: when ordering 24″ W version, a single door option is available, thus please specify as special instruction).

    DESCRIPTION: Base cabinet, with Butt doors, which is accessible from both sides. Single drawer, which is accessible from one side only, other drawer front is false. (Note: when height is changed from standard 34.5″ H, drawer height remains fixed at 5″ H).

  • Base Double Entry, Double Door w/Single Drawer

    Base Double Entry, Double Door w/Single Drawer

    CABINET CODE: BDE  (CSBDE2D1DCS will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only. (Note: 12″, 15″, 27″, and 30″ deep available with Blum Tandem soft close drawer glides ONLY).

    TO ORDER: Indicate BDE + width + height. (i.e. BDE3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. (Note: when ordering 24″ W version, a single door option is available, thus please specify as special instruction).

    DESCRIPTION: Base cabinet, with double doors/upright center divider, which is accessible from both sides. Single drawer, which is accessible from one side only, other drawer front is false. (Note: when height is changed from standard 34.5″ H, drawer height remains fixed at 5″ H).

  • Base Double Entry Cabinet, Double Doors and Drawers

    Base Double Entry Cabinet, Double Doors and Drawers

    CABINET CODE: BDE  (CSBDECS will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only. (Note: 12″, 15″, 27″, and 30″ deep available with Blum Tandem soft close drawer glides ONLY).

    TO ORDER: Indicate BDE + width + height. (i.e. BDE4234.5  for a 42″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. (Note: when ordering 24″ W version, a single door option is available, thus please specify as special instruction).

    DESCRIPTION: Base cabinet, with double doors/upright center divider, accessible from both sides. Two drawers, which are accessible from one side only, other drawer fronts are false. (Note: when height is changed from standard 34.5″ H, drawer height remains fixed at 5″ H).

Base Cabinets - Drawer/Door Combination

Ideal for bake centers or islands, these cabinets offer a variety of storage options all in one cabinet! Accessorize with cutlery dividers and pull out trays and you have yourself one do-it-all cabinet! Take a look at each and find one that works for you!

  • Base Combo Three Drawer Left or Right w/Butt Doors

    Base Combo Three Drawer Left or Right w/Butt Doors

    CABINET CODE: BC3D(L/R)_BD  (CSBC3D(L/R) will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BC3DL or + width + height + BD. (i.e. BC3DR3034.5BD  for a right version, 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with combination drawers above, and Butt doors below. Please note, left version has the large drawer to the left, while right version has the large drawer to right (as pictured). (Note: when height is changed from standard 34.5″ H, only lower door area height changes. Drawer openings remain fixed at 5″ H and 11.5″ H respectively).

  • Base Combo Three Drawer Left or Right w/Center Stile

    Base Combo Three Drawer Left or Right w/Center Stile

    CABINET CODE: BC3D(L/R)  (CSBC3D(L/R) will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 27″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BC3DL or R + width + height. (i.e. BC3DR3034.5  for a right version, 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with combination drawers above, and double doors with center divider below. Please note, left version has the large drawer to the left, while right version has the large drawer to right (as pictured). (Note: when height is changed from standard 34.5″ H, only lower door area height changes. Drawer openings remain fixed at 5″ H and 11.5″ H respectively).

  • Base Combo Four Drawer

    Base Combo Four Drawer

    CABINET CODE: BC4D  (CSBC4D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BC4D + width + height. (i.e. BC4D3634.5  for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with combination drawers above, and double doors/upright center divider below. (Note: when height is changed from standard 34.5″ H, only lower door area height changes. Drawer openings remain fixed at 5″ H and 11.5″ H respectively. When width changes, drawer opening widths are equal).

  • Base 2 Door 5 Drawer

    Base 2 Door 5 Drawer

    CABINET CODE: B2D5D  (CSB2D5D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 48″ to 96″  in 1/16″ increments
    Height: 31.5″ to 34.5″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate B2D5D + width + height. (i.e. B2D5D6034.5  for a 60″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with 3 equal drawers above and drawer stack in the middle. 48″ to 72″ wide cabinets use a single door on left and right. Cabinets 60″ to 72″ can have either single doors or double doors. Cabinets 72″ to 96″ use double doors only. Note: when height is changed from standard 34.5″ H, only lower door area heights changes. Top drawer openings remain fixed at 5″ H and 11.5″ H respectively. When width changes, all openings change and remain equal. This cabinet uses a full top (not spreaders) and upright partitions between the openings.

    Important note: For inset cabinets, the upright dividers require that the assembler use shims to mount the drawer glides as the mounting brackets will not fit behind the face frame. Speak with a sales rep for more details.

Base Cabinets – Appliance

These cabinets are designed to accommodate the now widely embraced idea of putting microwaves within easy reach of folks of any stature. Many microwaves are now 'drawer' appliances and these cabinets are designed to be trimmed to accept any microwave you find.

  • Base Under Counter Microwave

    Base Under Counter Microwave

    CABINET CODE: BUCM (CSBUCM will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BUCM + width + height. (i.e. BUCM3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with ‘set in place’ Microwave (MW) opening above the drawer. (Note: for a standard 34.5″ H cabinet, the top MW opening height is 15.75″ H. As cabinet height changes, upper MW opening height changes. Lower drawer opening height fixed at 10.25″ H). If you desire the upper MW opening to have the same interior (finish, species, etc) as the exterior of the cabinet, then specify the Matching Interior Option.

  • Built-In Under Counter Microwave

    Built-In Under Counter Microwave

    CABINET CODE: BIUCM (CSBIUCM will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BIUCM + width + height. (i.e. BIUCM3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with built-in Microwave (MW) opening above the drawer. (Note: for a standard 34.5″ H cabinet, the top MW opening height is 13″ H, and the MW opening width is 6″ less than cabinet width. As cabinet height changes, upper MW opening height changes. MW opening can be field trimmed 5″ in height and 3″ in width. Lower drawer opening height fixed at 8″ H).

  • Base Cooktop Cabinet

    Base Cooktop Cabinet

    CABINET CODE: BCT (CSBCT will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 42″ in 1/16″ increments
    Height: 31.5″ to 42″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BCT + width + height. (i.e. BCT3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with Butt doors above a single drawer. (Note: when height is changed from standard 34.5″ H, only the top opening changes. Drawer opening height fixed at 11.5″ H).

  • Base Cook Top Two Drawer

    Base Cook Top Two Drawer

    CABINET CODE: BCT2D (CSBCT2D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 34.5″ only
    Depth: 24″, 27″, and 30″

    TO ORDER: Indicate BCT2D + width + height. (i.e. BCT2D3634.5  for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet with two equal height drawers designed for countertop mounted cooktops.  Cabinet back recessed 3″ to accommodate and conceal supply lines.  Drawer depth is 3″ less due to recessed back.  Top drawer box is 8″ high to accommodate appliance housing, bottom drawer box is 10″

  • Base Range Three Drawer

    Base Range Three Drawer

    CABINET CODE: BR3D (CSBR3D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 39″ in 1/16″ increments
    Height: 31.5″ to 34.5″ in 1/16″ increments
    Depth: 12″, 15″, 18″, 21″, 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BR3D + width + height. (i.e. BR3D3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet, with false top drawer, and 2 operable lower drawers. (Note: as cabinet height changes, only lower opening height changes. Top and middle openings fixed at 5″ H and 8″ H respectively).

  • Base Cook Top Four Drawer

    Base Cook Top Four Drawer

    CABINET CODE: BCT4D (CSBCT4D will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 60″ in 1/16″ increments
    Height: 34.5″ only
    Depth: 24″, 27″, and 30″

    TO ORDER: Indicate BCT4D + width + height. (i.e. BCT4D3634.5  for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet with four equal height drawers designed for countertop mounted cooktops.  Cabinet back recessed 3″ to accommodate and conceal supply lines.  Drawer depth is 3″ less due to recessed back.  Top drawer box is 8″ high to accommodate appliance housing, bottom drawer box is 10″

  • Base Range Top Two Drawer

    Base Range Top Two Drawer

    CABINET CODE: BRT2D (CSBRT2Dwill appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 34.5″ only
    Depth: 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BRT2D + width + height. (i.e. BRT2D3634.5  for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet for a Range top, with double drawers below. Cabinet back is recessed 3″ to allow for gas feeds, etc. Note that drawer box depth will, therefore, be 6″ less than overall cabinet depth. Both drawer boxes are 8″ high and cannot be changed. Standard appliance opening is 6″ high, but opening height is customizable from 5″ to 8″ in 1/16″ increments. Includes full floor to support the appliance.

  • Base Range Top Four Drawer

    Base Range Top Four Drawer

    CABINET CODE: BRT4D (CSBRT4Dwill appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 36″ to 60″ in 1/16″ increments
    Height: 34.5″ only
    Depth: 24″, 27″, and 30″ deep Only.

    TO ORDER: Indicate BRT4D + width + height. (i.e. BRT4D3634.5  for a 36″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Base cabinet for a Range top, with 4 drawers below. Cabinet back is recessed 3″ to allow for gas feeds, etc. Note that drawer box depth will, therefore, be 6″ less than overall cabinet depth. Both drawer boxes are 8″ high and cannot be changed. Standard appliance opening is 6″ high, but opening height is customizable from 5″ to 8″ in 1/16″ increments. Includes full floor to support the appliance.

Base Cabinets - Decorative

These open shelf cabinets are designed to create open storage solutions where you can decorate and accessorize. They very popular in islands as a way to make them look more like furniture.

  • Base Open Unit

    Base Open Unit

    CABINET CODE: BOU (CSBOU will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 15″ to 48″ in 1/16″ increments
    Height: 31.5″ to 48″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BOU + width + height. (i.e. BOU3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. Available with optional valance designs on top and bottom rails (see pg. 11.3 for valance options – Straight, Roman Arch, Classic Arch, Traditional Arch or Elegant Arch). Straight (no arch) 1-1/2″ top rail will be used unless specified. Bottom rail will be 1.5″ and will receive a toe kick unless Flush toe option (with or without an arch cutout type) is specified in special instructions.

    DESCRIPTION: Base cabinet open shelf and optional shaped top and/or bottom rail.  Available with optional valance designs on top and bottom rails (see pg. 11.3 for valance options – Straight, Roman Arch, Classic Arch, Traditional Arch or Elegant Arch).

  • Base Pet Unit

    Base Pet Unit

    CABINET CODE: BPU (CSBPU will appear on your quote if your cabinet is not one of the standard sizes. CS = Custom Sized)

    SIZES:
    Width: 30″ to 48″ in 1/16″ increments
    Height: 31.5″ to 48″ in 1/16″ increments
    Depth: 18″ to 24″ in 1/16″ increments

    TO ORDER: Indicate BPU + width + height. (i.e. BOU3034.5  for a 30″ W x 34.5″ H cabinet). If depth other than standard 24″ is required, note as special instruction. Available with optional valance designs on top and bottom rails (see pg. 11.3 for valance options – Straight, Roman Arch, Classic Arch, Traditional Arch or Elegant Arch). Straight (no arch) 1-1/2″ top rail will be used unless specified. Bottom rail will be 2.5″ (includes bed rail) and will receive a toe kick unless Flush toe option (with or without an arch cutout type) is specified in special instructions.

    DESCRIPTION: Base cabinet open shelf and optional shaped top and/or bottom rail.  Available with optional valance designs on top and bottom rails (see pg. 11.3 for valance options – Straight, Roman Arch, Classic Arch, Traditional Arch or Elegant Arch). Bottom rail is 6-1/2″ high for all valance designs. 1″ rail extension provides a lip to keep pet bed in place (pet bed not included).
