Cabinets for Home Office & Media

Download the Office Cabinet Catalog

Home Office Cabinets – Base

The desk base anchors the office. It is always good to have one of these to hold larger items, reams of paper, files and other office essentials.

Hide/Show Products

(DB) Desk Base Cabinet – Single Door

CABINET CODE: DB (CSDB will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12″ to 24″ in 1/16″ increments
Height: 29.5″ only
Depth: 18, 21 and 24″ only. 24″ is standard.

TO ORDER: Indicate DB + width + height. IE: DB1829.5 for a 18″ wide cabinet. If other than standard 24″ deep is needed, note as special instruction.

DESCRIPTION: Base cabinet with single door and drawer, one shelf. 2-1/2″ high flush toe is standard/mandatory, 24″ deep is standard – 18 and 21″ deep are optional. Insides are unfinished. Both drawers designed to accommodate Pendaflex files (installed front to back). See accessories section for more file hanging options

Start My Quote
(DB-BD) Desk Base Cabinet – Butt Doors

CABINET CODE: DB_BD (CSDB will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24 to 36″ in 1/16″ increments
Height: 29.5″ only
Depth: 18, 21 and 24″ – 24″ is standard

TO ORDER: Indicate DB + width + height (29.5 only) + BD. IE: DB3029.4BD for a 30″ wide cabinet with Butt Doors. If depth other than standard 24″ is required, specify as special instruction

DESCRIPTION: Desk base cabinet with butt doors and single drawer. 2-1/2″ flush toe is standard

Start My Quote
(DBFD) Desk Base Full Door Cabinet – Single Door

CABINET CODE: DBFD (CSDBFD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12 to 24″ in 1/16″ increments
Height: 29.5″ only
Depth: 18 to 30″ in 1/16″ increments. 24″ is standard

TO ORDER: Indicate DBFD + width + height (29.5 only). IE: DB1829.4 for a 18″ wide cabinet. If depth other than standard 24″ is required, specify as special instruction

DESCRIPTION: Desk base cabinet with single door and drawer. 2-1/2″ flush toe is standard

Start My Quote

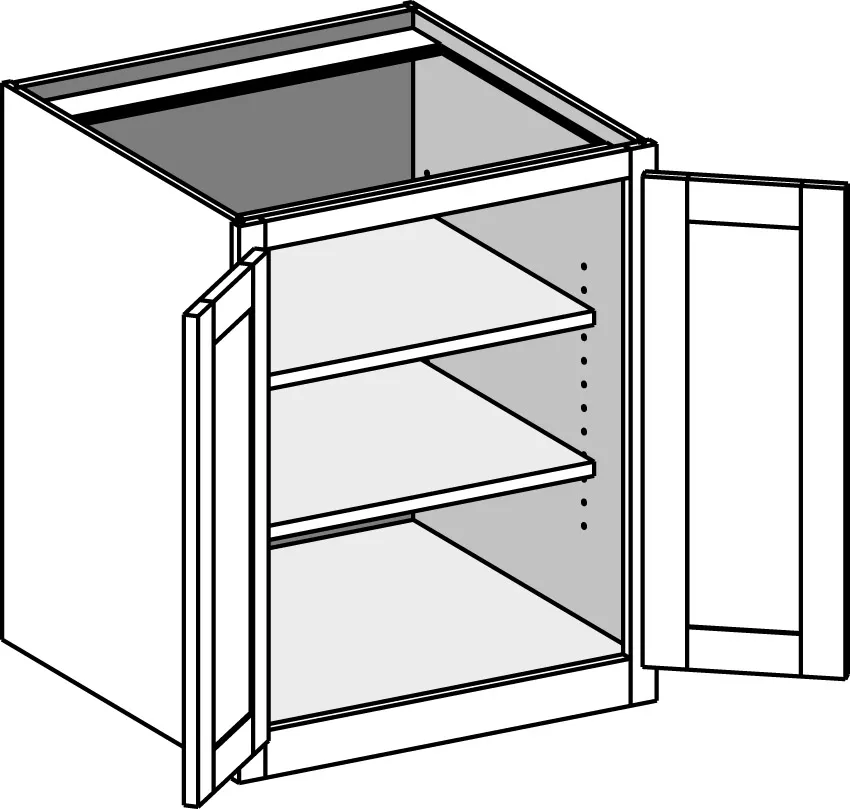

(DBFD-BD) Desk Base Full Door Cabinet – Butt Doors

CABINET CODE: DBFD_BD (CSDBFD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24 to 36″ in 1/16″ increments
Height: 29.5″ only
Depth: 18 to 30″ in 1/16″ increments. 24″ is standard

TO ORDER: Indicate DBFD + width + height (29.5 only) +BD. IE: DBFD3029.4BD for a 30″ wide cabinet. If depth other than standard 24″ is required, specify as special instruction

DESCRIPTION: Desk base cabinet with Butt doors and drawer. 2-1/2″ flush toe is standard

Start My Quote
(DB2D) Desk Base 2 Drawer

CABINET CODE: DB2D (CSDB2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12″ to 36″ in 1/16″ increments
Height: 29.5″ only
Depth: 18, 21 and 24″ only. 24″ is standard.

TO ORDER: Indicate DB2D + width + height. IE: DB2D1829.5 for a 18″ wide cabinet. If other than standard 24″ deep is needed, note as special instruction.

DESCRIPTION: 2-1/2″ high flush toe is standard/mandatory, 24″ deep is standard – 18 and 21″ deep are optional. Insides are unfinished. Both drawers designed to accommodate Pendaflex files (installed front to back). See accessories section for more file hanging options

Start My Quote
(DB3D) Desk Base 3 Drawer

CABINET CODE: DB3D (CSDB3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12″ to 36″ in 1/16″ increments
Height: 29.5″ only
Depth: 18, 21 and 24″ only. 24″ is standard.

TO ORDER: Indicate DB3D + width + height. IE: DB3D1829.5 for a 18″ wide cabinet. If other than standard 24″ deep is needed, note as special instruction.

DESCRIPTION: 2-1/2″ high flush toe is standard/mandatory, 24″ deep is standard – 18 and 21″ deep are optional. Insides are unfinished. Bottom drawer is designed to accommodate Pendaflex files (installed front to back). See accessories section for more file hanging options

Start My Quote
(LF2D) Lateral File 2 Drawer

CABINET CODE: LF2D (CSLF2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 30″ through 36″ in 1/16″ increments
Height: 29-1/2″ only
Depth: 21″ only (pull forward for deeper applications)

TO ORDER: Indicate LF2D + width + height. IE: LF2D3029.5 for a 30″ wide unit.

DESCRIPTION: 2-1/2″ high flush toe is standard/mandatory. Insides are unfinished. Both drawers designed to accommodate Pendaflex files (installed left to right). See accessories section for more file hanging options. NOTE: Full Extension Interlocking ball bearing glides standard, no other options available

Start My Quote

Home Office Cabinets – Specialty Wall

These counter-setting cabinets are a great way to make a powerful design statement in your new office, creating a 'furniture feel' in your office. Don't forget, you can easily combine any standard wall cabinet we offer in an office layout as well!

Hide/Show Products

(W1D) Wall Cabinet w/1 Drawer – Single Door

CABINET CODE: W1D (CSW1D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 15″ to 24″ Only
Height: 30″ to 72″ in 1/16″ increments
Depth: 12, 12.5, 15, 18, 21, 24″ only

TO ORDER: Indicate W1D + width + height. IE: W1D1560 for a 15 x 60″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Wall cabinet with single door, 1 drawer. Fin1shed end option must be specified.

Start My Quote
(W1D-BD) Wall Cabinet w/1 Drawer – Butt Doors

CABINET CODE: W1D_BD (CSW1D_BD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24″ to 36″ Only
Height: 30″ to 72″ in 1/16″ increments
Depth: 12, 12.5, 15, 18, 21, 24″ only

TO ORDER: Indicate W1D + width + height +BD. IE: W1D3060BD for a 30 x 60″ cabinet with BUTT DOORS. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Wall cabinet with single door, 1 drawer. Finished end option must be specified.

Start My Quote
(W1DCS) Wall Cabinet w/1 Drawer – Double Doors

CABINET CODE: W1D (CSW1D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 27″ to 36″ Only
Height: 30″ to 72″ in 1/16″ increments
Depth: 12, 12.5, 15, 18, 21, 24″ only

TO ORDER: Indicate W1D + width + height. IE: W1D3060 for a 30 x 60″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Wall cabinet with double doors and upright center stile, 1 drawer. Finished end option must be specified.

Start My Quote
(W2D) Wall Cabinet w/2 Drawers – Single Door

CABINET CODE: W2D (CSW2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 15″ to 24″ Only
Height: 30″ to 72″ in 1/16″ increments
Depth: 12, 12.5, 15, 18, 21, 24″ only

TO ORDER: Indicate W2D + width + height. IE: W2D1560BD for a 15 x 60″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Wall cabinet with single door and 2 drawers. Finished end option must be specified.

Start My Quote
(W2D-BD) Wall Cabinet w/2 Drawers – Butt Doors

CABINET CODE: W2D (CSW2D_BD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24″ to 36″ Only
Height: 30″ to 72″ in 1/16″ increments
Depth: 12, 12.5, 15, 18, 21, 24″ only

TO ORDER: Indicate W2D + width + height. IE: W2D3060BD for a 30 x 60″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Wall cabinet with butt doors and 2 drawers. Finished end option must be specified.

Start My Quote
(W2D-CS) Wall Cabinet w/2 Drawers – Double Doors

CABINET CODE: W3D_BD (CSW3D_BD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24″ to 36″ Only
Height: 30″ to 72″ in 1/16″ increments
Depth: 12, 12.5, 15, 18, 21, 24″ only

TO ORDER: Indicate W2D + width + height + BD. IE: W3D3060 for a 30 x 60″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Wall cabinet with two doors with a center stile and 2 drawers. Finished end option must be specified.

Start My Quote
(WOBS) Wall Open Bookshelf

CABINET CODE: WOBS (CSWOBS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 15″ to 36″ in 1/16″ increments
Height: 30″ to 72″ in 1/16″ increments
Depth: 5.5 to 27″ in 1/16″ increments

TO ORDER: Indicate WOBS + width + height. IE: WOBS3048 for a 30 x 48″ high cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Counter setting Wall cabinet with Open shelves. Finished ends and matching interior options must be specified.

Start My Quote
(WOBSCS) Wall Open Bookshelf w/ Center Stile

CABINET CODE: WOBSCS (CSWOBSCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 36″ to 72″ in 1/16″ increments
Height: 30″ to 72″ in 1/16″ increments
Depth: 5.5″ to 27″ in 1/16″ increments

TO ORDER: Indicate WOBSCS + width + height. IE: WOBSCS3048 for a 30 x 48″ high cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Counter setting Wall cabinet with Open shelves. Finished ends and matching interior options must be specified.

Start My Quote

Home Office Cabinets – Tall

Our office tall cabinets offer bookcase storage to help you organize your novels, business and legal books or just the pictures of your family you treasure dearly. We offer an assortment of cabinets, some totally open bookcases and some with door storage in the bottom. NOTE: Available in Advantage Plywood Cabinet Only!

Hide/Show Products

(ORC) Other Room Tall Cabinet-Single Door

CABINET CODE: ORC (CSORC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12″ to 24″ in 1/16″ increments
Height: 84″ to 120″ in 1/16″ increments
Depth: 5.5″ to 30″ in 1/16″ increments

TO ORDER: Indicate ORC + width + height. IE: ORC2496 for a 24 x 96 cabinet. If depth other than the standard 12.5″, note as special instruction.

DESCRIPTION: Tall cabinet, standard 12-1/2″ deep with open shelving above and single door below. 5-1/2″ high flush toe is standard/mandatory. Toe does not line up with desk base cabinets. Specify matching interior if you want the cabinet interior to match exterior. Doors for top section are optional and must be specified. Lower section aligns with 34-1/2″ high base cabinets.

Start My Quote
(ORC-BD) Other Room Tall Cabinet-Butt Door

CABINET CODE: ORC (CSORC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24″ to 36″ Only
Height: 84″ to 120″ in 1/16″ increments
Depth: 5.5 to 30″ in 1/16″ increments

TO ORDER: Indicate ORC + width + height. IE: ORC3084 for a 30 x 84″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Tall cabinet with open shelving above and Butt doors below. 5-1/2″ high flush toe is standard/mandatory. Toe does not line up with desk base cabinets. Specify Matching interior option if you would like the interior to be finished to match exterior. Doors for top section are optional and must be specified. Lower section aligns with 34-1/2″ high base cabinets.

Start My Quote
(ORS) Other Room Shelf Cabinet – No doors

CABINET CODE: ORS (CSORS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12″ to 36″ Only
Height: 84″ to 120″ in 1/16″ increments
Depth: 5.5 to 30″ in 1/16″ increments

TO ORDER: Indicate ORS + width + height. IE: ORS3084 for a 30 x 84″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

DESCRIPTION: Tall cabinet with open shelving and no doors. 5-1/2″ high flush toe is standard/mandatory. Toe does not line up with desk base cabinets. Specify Matching interior option if you would like the interior to be finished to match exterior (not available in cabinets over 96″ tall)

Start My Quote

Home Office Cabinets – Miscellaneous

Desk drawers and letter slots can be used for more than office areas. Ideal for kitchen bill paying centers or make-up areas in a bathroom, these versatile pieces are a must whenever you plan to sit!

Hide/Show Products

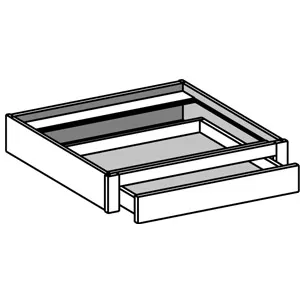

(DD) Desk Pencil Drawer, 4.5″ High

CABINET CODE: DD (CSDD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 12″ through 36″ in 1/16″ increments
Height: 4.5″ only
Depth: 18, 21 and 24″ Only

TO ORDER: Indicate DD + width + height. IE: DD364.5 for a 36 wide x 4.5″ high Unit. If depth is different than standard 24″, note as special instruction.

DESCRIPTION: Pencil style desk drawer 4.5″ high. 24″ deep standard, other depths must be specified. Drawer front may be required as slab due to minimal height to fit a matching drawer.

Start My Quote
(DDSL/R) Desk Drawer Support Leg

CABINET CODE: DDSL(R) (CSDDSL-R will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Depth: 18, 21 and 24″ Only
Height: 29 through 42″ in 1/16″ increments

TO ORDER: Indicate DDSL (or R) + width + height. IE: DDSL2434.5 would be for a 24 x 34.5 Left hand Unit.

DESCRIPTION: Advantage plywood line only. Left or right, left shown Bottom can be trimmed to custom height Support leg only (desk drawer not included). Exposed edge is banded matching specie veneer

Start My Quote
(LFS) Letter file Slot – 4 Slot

CABINET CODE: LFS (CSLFS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 24 to 29-15/16″
Height: 6″ only
Depth: 12.5 only

TO ORDER: Indicate LFS + width + height. IE: LFS246 for a 24″ wide unit.

DESCRIPTION: 4 slot letter file cabinet. Advantage line only. Doweled construction using 1/2″ Plywood with edgebanded face.

Start My Quote
(LFS) Letter file Slot – 5 Slot

CABINET CODE: LFS (CSLFS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 30″ to 32-15/16″
Height: 6″ only
Depth: 12.5 only

TO ORDER: Indicate LFS + width + height. IE: LFS306 for a 30″ wide unit.

DESCRIPTION: 5 slot letter file cabinet. Advantage line only. Doweled construction using 1/2″ Plywood with edgebanded face.

Start My Quote

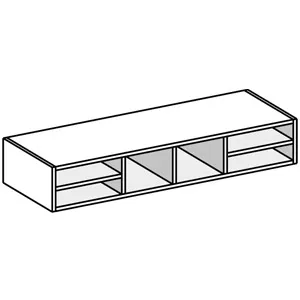

(LFS) Letter file Slot – 6 Slot

CABINET CODE: LFS (CSLFS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 33″ to 38-15/16″
Height: 6″ only
Depth: 12.5 only

TO ORDER: Indicate LFS + width + height. IE: LFS336 for a 33″ wide unit.

DESCRIPTION: 6 slot letter file cabinet. Advantage line only. Doweled construction using 1/2″ Plywood with edgebanded face.

Start My Quote
(LFS) Letter file Slot – 7 Slot

CABINET CODE: LFS (CSLFS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 39″ to 44-15/16″
Height: 6″ only
Depth: 12.5 only

TO ORDER: Indicate LFS + width + height. IE: LFS396 for a 39″ wide unit.

DESCRIPTION: 7 slot letter file cabinet. Advantage line only. Doweled construction using 1/2″ Plywood with edgebanded face.

Start My Quote
(LFS) Letter file Slot – 8 Slot

CABINET CODE: LFS (CSLFS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 45″ to 48″
Height: 6″ only
Depth: 12.5 only

TO ORDER: Indicate LFS + width + height. IE: LFS486 for a 48″ wide unit.

DESCRIPTION: 8 slot letter file cabinet. Advantage line only. Doweled construction using 1/2″ Plywood with edgebanded face.

Start My Quote

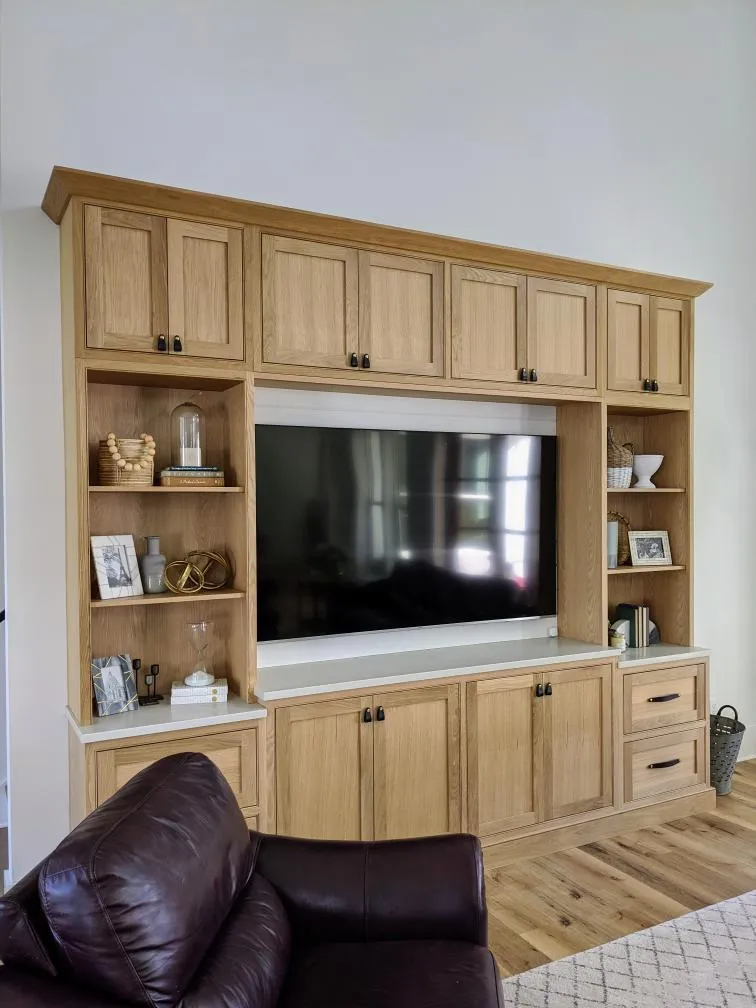

Media Cabinets

Media cabinets are ideal for storing your media components and supporting today's common flat screen TVs. When accompanied by wall cabinets such as our bookcases or wall cabinets with drawers, you can design a stunning entertainment center! Media base cabinets come in widths up to 72".

Hide/Show Products

(MC2FD) Media Center – 2 Full Door

CABINET CODE: MC2FD (CSMC2FD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 30″ to 48″ in 1/16″ increments
Height: 10″ to 48″ in 1/16″ increments
Depth: 5.5″ to 30″ in 1/16″ increments

TO ORDER: Indicate MC2FD + width + height. IE: MC2FD4834.5 for a 48″ wide x 34.5″ cabinet. If depth other than standard 24″ is required, note as special instruction.

DESCRIPTION: Media cabinet with 2 equal full doors. Vertical partitions separate the openings. 10-22″ high has no shelves

Start My Quote

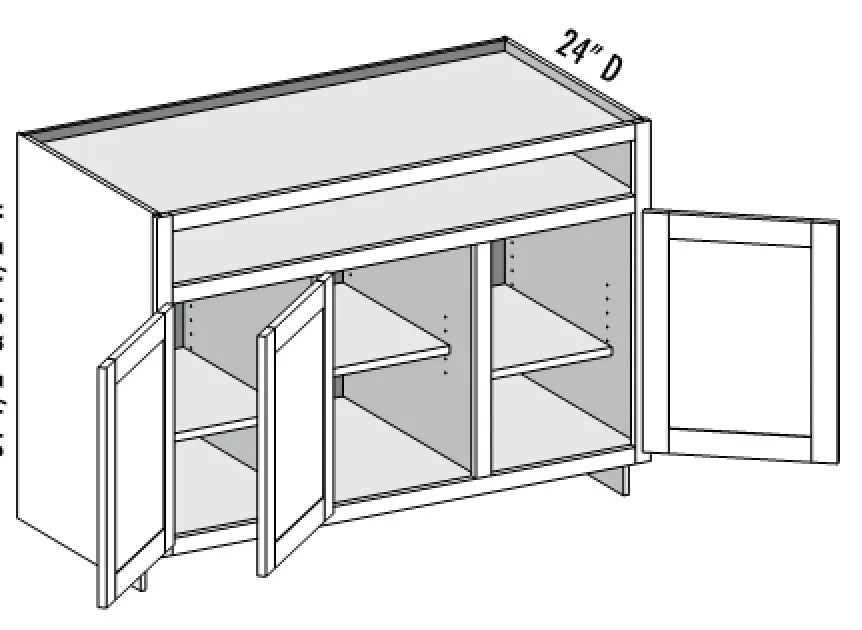

(MC3FD) Media Center – 3 Full Door

CABINET CODE: MC3FD (CSMC3FD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 48″ to 72″ in 1/16″ increments
Height: 10″ to 48″ in 1/16″ increments
Depth: 5.5″ to 30″ in 1/16″ increments

TO ORDER: Indicate MC3FD + width + height. IE: MC3FD4834.5 for a 48″ wide x 34.5″ cabinet. If depth other than standard 24″ is required, note as special instruction.

DESCRIPTION: Media cabinet with 3 equal full doors. Vertical partitions separate the openings. 10-22″ high has no shelves

Start My Quote

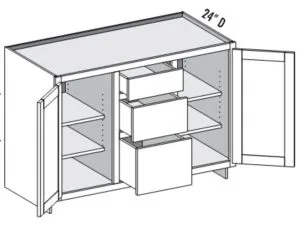

(MC2D3D) Media Cabinet, 2 Doors & 3 Drawer center

CABINET CODE: MC2D3D (CSMC2D3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 48″ to 72″ in 1/16″ increments
Height: 31.5″ to 34.5″ in 1/16″ increments
Depth: 12, 15, 18, 21, 24, 27 and 30″ only.

TO ORDER: Indicate MC2D3D + width + height. IE: MC2D3D4834.5 for a 48″ wide x 34.5″ cabinet. If depth other than standard 24″ is required, note as special instruction.

DESCRIPTION: Media cabinet with 3 drawers flanked by 2 full height doors. When height changes, top opening is fixed at 5″

Start My Quote
(MC2D2D) Media Center – 2 Door 2 Drawer

CABINET CODE: MC2D2D (CSMC2D2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 48″ to 72″ in 1/16″ increments
Height: 31.5″ to 34.5″ in 1/16″ increments
Depth: 12, 15, 18, 21, 24, 27 and 30″ only.

TO ORDER: Indicate MC2D2D + width + height. IE: MC2D2D4834.5 for a 48″ wide x 34.5″ cabinet. If depth other than standard 24″ is required, note as special instruction.

Start My Quote

DESCRIPTION: Media cabinet with 2 drawers flanked by 2 doors, opening above for electronics. When height changes, top opening is fixed at 5″
(MC2D) Media Center – 2 Door

CABINET CODE: MC2D (CSMC2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 30″ to 48″ in 1/16″ increments
Height: 31.5″ to 42″ in 1/16″ increments
Depth: 5.5″ to 30″ in 1/16″ increments

TO ORDER: Indicate MC2D + width + height. IE: MC2D4834.5 for a 48″ wide x 34.5″ cabinet. If depth other than standard 24″ is required, note as special instruction.

DESCRIPTION: Media cabinet with open compartment above 2 equal doors. Partition separates the two openings. When height changes from standard 34.5, top opening remains fixed at 5″

Start My Quote
(MC3D) Media Center – 3 Door

CABINET CODE: MC3D (CSMC3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

SIZES:
Width: 48″ to 72″ in 1/16″ increments
Height: 31.5″ to 42″ in 1/16″ increments
Depth: 5.5″ to 30″ in 1/16″ increments

TO ORDER: Indicate MC3D + width + height. IE: MC3D4834.5 for a 48″ wide x 34.5″ cabinet. If depth other than standard 24″ is required, note as special instruction.

DESCRIPTION: Media cabinet with open compartment above 3 equal doors. Vertical partitions separate the openings. When height changes from standard 34.5, top opening remains fixed at 5″

Start My Quote

Sample Home Office Layouts

Below are some common home office layouts. Not seeing what you need? Work with a designer to create your custom office.

L-Shaped Elegance

This corner office setup combines ample file storage below with an equally generous number of wall cabinets above. Open shelves lighten up the look while the Mullion door and light rail add a touch of elegance.

Like this basic layout?

Start My Quote

View cabinet list
Cabinet List
1. Wall 24″w x 40″h FLL
2. Wall 24″w x 40″h M.I. No Door
3. Wall 24″ w x 40″h
4. Corner Wall 24″w x 40″h M.I. Standard Lite Mullion 2×3
5. Wall 34″w x 40″h FLR
6. Desk Base 24″w x 29.5″h FLB
7. Desk Drawer 24″ w x 4.5″h
8. Desk Base 2 Drawer 23″w x 29.5″h FLL EXTR
9. Lateral Files 2 Drawer 33″w x 29.5″h FLR EXTL
  Finish #1 – #5 with plywood & Shaker Light Rail

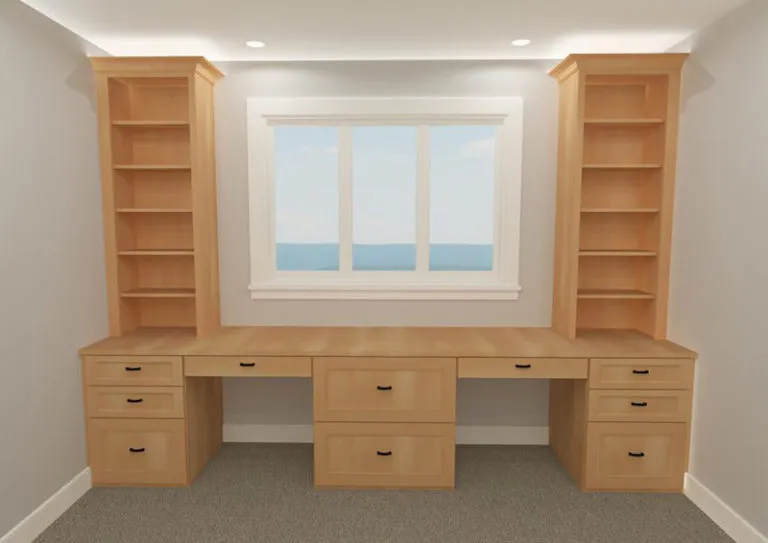

Built-in Workspace for Two

This workspace for two offers a shared file cabinet at center stage and a personal set of drawers on either end. The open shelves offer an opportunity to personalize storage and decor from one side to the other.

Like this basic layout?

Start My Quote

View cabinet list
Cabinet List
1. Wall Open Book Shelf 21″w x 60″h FLR EXTL M.I.
2. Wall Open Book Shelf 21″w x 60″h FLL EXTR M.I.
3. Desk Base 3 Drawer 21″w x 29.5″h FLR EXTL
4. Desk Drawer 27″w x 4.5″h
5. Lateral File 2 Drawer 30″w x 29.5″h FLB
6. Desk Drawer 27″w x 4.5″h
7. Desk Base 3 Drawer 21″w x 29.5″h FLL EXTR
Classy & Clutter-free Wall Unit

This office provides enough space to keep all supplies and equipment behind closed doors. The Ebony paint is a handsome twist on traditional office furniture finishes.

Like this basic layout?

Start My Quote

View cabinet list
Cabinet List
1. Wall 36″w x 60″h FLB Full Height Doors
2. Wall 36″ w x 27″h
  Finish Bottom with plywood & Shaker Light Rail
3. Wall 36″w x 60″h FLL EXTR Full Height Doors
4. Desk Base 3 Drawer 36″w x 29.5″h FLB
5. Desk Drawer 36″w x 4.5″h
6. Desk Base 3 Drawer 36″w x 29.5″h FLL EXTR
L-Shaped Organizer’s Dream

This workspace has enough storage for an entire family! 5 drawers, open shelves, double door cabinets, AND letter file slots. This setup would be ideal for both office supplies and crafting items.

Like this basic layout?

Start My Quote

View cabinet list
Cabinet List
1. Wall Open Book Shelf 36″w x 63.5″h FLB M.I.
2. Corner Wall 24″w x 40″h
3. Wall 27.5″w x 40″h
4. Wall 27.5″ w x 40″h M.I. Standard Lite Mullion 2×3
5. Wall 24″w x 34″h FLR
6. Letter File Slot 24″w x 6″h
7. Desk Base Full Door 35″w x 29.5″h FLL EXTR
8. Desk Base 2 Drawer 24″w x 29.5″h EXTL FLR
9. Desk Drawer 30″w x 4.5″h
10. Desk Base 2 Drawer 24″w x 29.5″h FLB
  Finish bottom of #2-#4 & #6 with plywood & Shaker Light Rail
T-shaped Office for Two, or Four!

The ultimate setup for a dedicated office space. Two very generous work areas, or four smaller ones. For a day job, homework, or even crafting…this space has it all!

Like this basic layout?

Start My Quote

View cabinet list
Cabinet List
1. Wall Open Book Shelf 18″w x 58″h FLR EXTL M.I.
2. Wall 36″w x 33″h
3. Wall Open Book Shelf 26″w x 58″h FLB M.I.
4. Wall 36″w x 33″h
5. Wall Open Book Shelf 18″w x 58″h FLL EXTR M.I.
6. Desk Base 2 Drawer 18″ w x 29.5″h FLR EXTL
7. Desk Base Full Door 26″w x 29.5″h FLB DT M.I. No Doors
8. Desk Base 2 Drawer 18″w x 29.5″ EXTR FLL
9. Desk Base Full Door 26″ w x 29.5″h x 12″d FLB M.I. DT No doors
10. ¾” Plywood 26” w x 29.5”h finish back of #9
  Finish bottom of #2 & #4 with plywood & Shaker Light Rail
Two-toned Wide Office Wall

If one color isn’t enough you can always mix-and-match. This desk features two pencil drawers and a more spacious seating area. The lower open shelf can house more decorative display items, while the doors can hide those you’d prefer to keep out of sight.

Like this basic layout?

Start My Quote

View cabinet list
Cabinet List
1. Wall 36″w x 48″h EXTL
2. Wall 48″w x 48″h M.I. No Doors (one opening)
3. Wall 36″w x 48″h EXTR
4. Desk Base 3 Drawer 33″w x 29.5″h FLR EXTL
5. Desk Drawer 27″w x 4.5″h
6. Desk Drawer 27″w x 4.5″h
7. Desk Base 3 Drawer 33″w x 29.5″h FLL EXTR
  Finish bottom of #1 – #3 with plywood & Shaker Light Rail

Home Office Gallery

Below are some home office photos from customer projects. Looking for help designing a home office like one of these? Work with one of our designers, or view sample office layouts. Click images to enlarge.

Start My Quote

Full Overlay, Albany Door, Designer White, Crown 1529-A — A well-used workspace doesn’t need to have office supplies visible at all times. For a crisp, clutter-free space consider incorporating two pencil drawers and using open shelving for decor instead of storage.

Full Overlay, Albany Door, Paint & Crown by Customer — A well-planned workspace can be versatile enough to support both a kid’s study and a craft area! For a timeless look that grows with the kids, go for Albany drawers and a two-piece straight crown.

Beaded Inset, Stockbridge Door, White Oak, Crown 1529 — This beautiful white oak media center has it all with a combo of both open and concealed storage.

Partial Overlay, Albany Door, Antique White, Crown 24 — This office layout maximizes surface area for at least two workers, if not four! Here, a Mission Post is used for counter support under the T-shaped desk.

Full Overlay, TW-10 Door, Arctic White — Office equipment and accessories may require non-standard openings. Our custom front frame option allows the cabinet that’s housing the item to be to sized just right!

Full Overlay, TW-1038 Door, Ebony, Crown 24 — This client made the most of her space with a polished L-shaped office built for two. The open shelving provides ample space for both storage and staging.

Flush Inset, Crawford Door, Arctic White — Well-coordinated color and texture can take a space from standard to spectacular. The contrast between white cabinets and dark stained countertop creates a sharp-looking space. Beadboard softens the upper cabinets, creating an inviting work environment.

Beaded Inset, Albany Door, Marina w/ Pewter Glaze, Crown 619 — This warm and functional sewing space inspires creativity! Wire grille inserts in the doors compliment the Marina finish for a one-of-a-kind look.

Partial Overlay, Savannah Door, Frosty White w/ Pewter Glaze, Crown 24 — Compact office spaces don’t have to forfeit organization. Open shelves and letter slot dividers keep everything tidy and within arm’s reach.

Partial Overlay, CRP-10 Door, Antique White — Bring life and function to a blank wall with a built-in media center. Open shelving adds structure for showcasing favorite movies, books, and photos.

Flush Inset, Albany Door, Crystal White — Repurposing the end of a kitchen cabinet run into a command center can create the perfect spot for homework and bill paying.

Full Overlay, CRP-10 Door, Arctic White, Crown 619 — It’s not always practical to dedicate an entire room to a home office. Sometimes a recessed nook is an ideal setup for getting the job done!

Start My Quote

Office / Media Cabinet Specs

Start My Quote

Home office base cabinets are 29.5″ high standard, no customization is allowed.
Media cabinets are available 31.5″ to 34.5″ high in 1/16″ increments.
There is no toe kick space on office cabinets. Instead, they come standard with a 2.5” flush toe. This cannot be changed. This allows the cabinet to have more storage space than a cabinet with a 4” toe box, but it also means these cabinets will not line up with standard base cabinets that have a 4” toe box. Take care when designing. Media cabinets have a standard 4” high recessed toe box, but can be ordered with a flush toe.
If you require a custom configuration for any cabinet that falls within a standard office/media cabinet size range, we can configure a cabinet almost any way you desire. We simply need a drawing of your face frame with its opening sizes and what you want in each opening. A designer or Cabinet Coach can help you with this. Contact us for more information.
Media cabinets with multi sections have fixed vertical panels that cannot be modified for location. Therefore, opening widths on these cabinets are fixed.
Wall cabinets are generally 12.5″ deep as standard, but other depths are available as needed. (Most companies offer 12″ deep as standard).
Office base cabinets are 24″ deep, but 18″ to 24″ are available in most models. 24″ depth is standard unless specified.
Depths called out with each cabinet are from the back of the cabinet to the front of the face frame and do not include the thickness of the door and drawer front.
Widths are as measured at the front frame, the widest part of the cabinet.
3/4″ plywood veneered/edge banded shelves are standard. Solid wood shelves are available as an upgrade on most models. Matching interior cabinets will always use a plywood shelf.
Tops/bottoms/Sides are 1/2″ plywood. 11/16″ plywood sides are available as an option.
Face frames are 3/4″ thick, solid wood

Want even more details? Click here.

Face Frames

3/4″ thick solid wood face frames with 1-1/2″ wide stiles and rails unless otherwise specified.
Custom front frame configurations are available.
Face frames will overhang the cabinet side by 5/16″ unless the flush end option is requested& (only available on Advantage). Contact us for details.

Tops, Bottoms & Sides

Standard sides/tops/bottoms: 1/2″ thick plywood sides/tops/bottoms with real wood veneered interior. Interior is prefinished in a UV cured acrylic topcoat. A Matching Interior option available where the cabinet interior is the same species and finish as the outside. This option is suggested for open/glass cabinets and is standard on many cabinets such as open bookcases. Note: Letter File Slots (LFS) cabinet comes as a panelized assembly (no front frame) and uses edge banded ½” plywood and glue/dowel assembly.
Exposed ends: (visible ends that are to be finished to match the cabinets) must be specified per side per cabinet.
Flush Ends: An 11/16″ flush end option is also available where the cabinet side flushes out with the cabinet face frame, eliminating the 5/16” face frame lip that is typical on face frame style cabinets. A slight 1/16″ overhang of the face frame will still be present, but the final appearance is much more furniture-like than the standard exposed end.

NOTE: If a finish is requested on cabinets, the flush end and exposed end options will automatically result in those sides being finished to match cabinets. Therefore, only request these finished side options on cabinets that will be visible after installation.

NOTE: While Conestoga considers their cabinet box an ‘all plywood’ cabinet, there are occasions where they specify a plywood with two thin MDF layers sandwiched in between the real wood veneer layers. This is done to A) improve the machining of the dovetail assembly slots B) result in a flatter, more stable plywood which does not cup or bow as easily and C) create a more uniform thickness for the plywood which aids in assembly. So, please be aware of the possible presence of these thin MDF layers in the layup of some of their plywood and also understand that we cannot specify a different all plywood board be used even if we chose to. We are beholden to Conestoga’s specifications and the presence of these layers will not be grounds for replacement or credit.

Cabinet Backs

Conestoga uses a 1/2″ back instead of a 1/4″ back. This gives the cabinet better strength, better screw holding power for drawer glide brackets which fasten to the cabinet back, and improved ease of assembly as the omission of the old hanger cleats allows for fewer steps while providing a better product.

Shelves

3/4″ plywood veneered/edge banded shelves are standard.
An 11/16” thick solid wood shelves is available as an upgrade. These solid wood shelves are pre-finished with a UV cured acrylic topcoat and feature a bull-nosed front edge. PLEASE NOTE: Shelves over 18″ deep and shelves for some specialty cabinets are not available with solid wood upgrade and will be sent in standard plywood automatically. This will not be deemed a mistake and will not be replaced.
Shelves are adjustable in 32mm increments. Shelves in base cabinets and tall cabinets are 3/4 depth.
Cabinets with Matching Interior option will receive plywood/edge banded shelves in matching veneer and finish.

Cabinet Interior

Interiors are finished in a clear UV acrylic topcoat on a Birch veneer. The Birch veneer will exhibit the light and dark patterning shown in many of our assembly videos. Some interior panels will be light, some dark and some mixed. This is a standard feature of interior-grade birch veneer and will not be considered defective.
Matching interiors are available in cabinets specified with the matching interior option (or those that get matching interiors as a standard). Interiors are finished to match the cabinets when finished cabinets are requested. Note that this only applies to standard woods (Cherry, Maple, Oak) and painted cabinets. Non-standard colors or species are not available with the matching interior option. For unfinished cabinets, the matching interior option will result in a matching species veneer on the inside of the cabinet, but it will be left unfinished. Unless the matching interior is specified, even unfinished cabinets will come with the interior already finished in the UV clear topcoat, so no finishing needs to be done by the customer.
Cabinets specified with matching interior will not have a solid wood shelf even when the solid wood shelf option is requested. Instead, these cabinets feature a 3/4 thick plywood top in the same species as the cabinet. The front edge of the shelf is edge banded in a matching species veneered edge tape. If ordering matching interior cabinets stained or stain/glazed, these plywood shelves will be finished to match.

Drawer boxes

Drawer boxes are fully assembled and finished, 5/8″ solid wood, and feature English dovetailed joinery. Standard drawer boxes are a natural birch hardwood. Hard Maple and Soft Maple drawer boxes are available for an upcharge. The result is a more consistent and lighter colored drawer box.
All drawer boxes come prepared to receive the drawer slides you have chosen. There is no additional machining or extra work required.

Drawer Glides

Standard drawer glide is Blum’s new and improved Tandem Full Extension model featuring their state of the art Soft Close feature and 4-way fingertip adjustability. All slides come in a poly pack with full installation instructions and hardware.
On inset cabinets, Conestoga will also supply a drawer glide mounting block made by Blum. These devices will allow the glide to be mounted behind the face frame which is required for the inset applications.
Lateral File cabinets (LF2D, CSLF2D), use a side mount ball bearing glide that feature an anti-tip device so only one drawer at a time can be opened. They feature a heavier weight rating for handling heavy drawers with files. Blum Tandem glides are not available in this cabinet model.

Hinges and Hardware

Overlay Hinges are a Blum concealed cup hinges with integrated soft close.
Inset hinges feature Blum’s concealed cup hinge and mounting bracket for simple adjustment of your inset doors. Soft close is standard for this hinge.
Hinges are automatically supplied with your cabinets in the overlay of your choice, but you can request that no hinges and/or hinge preparation be supplied with your cabinets/doors and then supply your own.
Knobs and handles are not supplied and no preparation is done to the doors for hardware. Customer must supply hardware and drill the doors/drawer fronts accordingly.

Counter Tops

Counter top material is the responsibility of the customer, but please note that ¾” thick plywood tops are available finished to match as are ¾” and 1” wood tops. However, shape can be square or rectangle only, no custom shapes are available. Ask a Cabinet Coach for details.

Start My Quote
