Vanity Cabinets - Standard

Vanity base cabinets are available in multiple sizes and allow necessary storage along side sink cabinets and tall cabinets.

  • (VB) Vanity Base Cabinets – Single Door

    (VB) Vanity Base Cabinets – Single Door

    CABINET CODE: VB  (CSB will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  12″ to 24″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VB + width + height . IE: VB2134.5 for a 21 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Standard base cabinet with one drawer over one door. One shelf.

Vanity Cabinets – Sink

Vanity Sink cabinets are the focus of your new bathroom. Flanked with drawer stacks or just by themselves and enhanced with decorative feet, sink base cabinets are the centerpiece which the rest of the bathroom revolves around. Check out our selection.

  • (VS-BD) Vanity Sink Cabinet w/Butt Doors

    (VS-BD) Vanity Sink Cabinet w/Butt Doors

    CABINET CODE: VS_BD  (CSBS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VS + width + height + BD. IE: VS3034.5BD for a 30 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base sink with butt doors, false drawer front.

  • (VS2D1D) Vanity Sink Cabinet w/Double Doors

    (VS2D1D) Vanity Sink Cabinet w/Double Doors

    CABINET CODE: VS (CSBS2D1D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VS + width + height. IE: VS3034.5 for a 30 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base sink with 2 doors and upright divider, false drawer front.

  • (VSX) Vanity Sink Cabinet w/Double Doors & Drawer Fronts

    (VSX) Vanity Sink Cabinet w/Double Doors & Drawer Fronts

    CABINET CODE: VSX (CSBS2D2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 30″ to 48″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VSX + width + height. IE: VSX3034.5 for a 30 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base sink with 2 false drawers over 2 doors doors.

  • (VBS-BD) Vanity Sink Cabinet w/Butt Doors & Utility Drawers

    (VBS-BD) Vanity Sink Cabinet w/Butt Doors & Utility Drawers

    CABINET CODE: VBS_BD  (CSVBS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  36″ only
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VBS + width (36″ only) + height + BD. IE: VBS3634.5BD for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base sink with butt doors, false drawer front for sink area and 2 small utility drawers. No shelves. 21″ Deep is standard. Any other depth must be specified as special instruction

  • (VBS) Vanity Sink Cabinet w/Double Doors & Utility Drawers

    (VBS) Vanity Sink Cabinet w/Double Doors & Utility Drawers

    CABINET CODE: VBS (CSVBS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  36″ to 48″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VBS + width (36″ only) + height . IE: VBS4234.5 for a 42 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base sink with double doors/upright divider, false drawer front for sink area and 2 small utility drawers. No shelves. 21″ Deep is standard. Any other depth must be specified as special instruction. Small drawer fronts come with 9″ wide opening regardless of cabinet width

  • (VSRV-BD) Vanity Sink ‘Reverse’ Cabinet w/Butt Doors

    (VSRV-BD) Vanity Sink ‘Reverse’ Cabinet w/Butt Doors

    CABINET CODE: VSRV_BD (CSVSRV will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  24″ to 36″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VSRV + width + height +BD . IE: VSRV3634.5BD for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Sink cabinet with butt doors and operable bottom drawer. No shelves. 21″ deep is standard, any other depth is optional and must be specified. When height changes, bottom drawer opening remains fixed at 5″. Cannot be used with floor plumbing

  • (VSRV) Vanity Sink ‘Reverse’ Cabinet w/Double Doors

    (VSRV) Vanity Sink ‘Reverse’ Cabinet w/Double Doors

    CABINET CODE: VSRV (CSVSRV will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  30″ to 36″ in 1/16″ increments
    Height: 31.5 to 42″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VSRV + width + height . IE: VSRV3634.5 for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Sink cabinet with double doors and operable bottom drawer. No shelves. 21″ deep is standard, any other depth is optional and must be specified. When height changes, bottom drawer opening remains fixed at 5″. Cannot be used with floor plumbing

  • (BSFD-BD) Vanity Base Sink Full Door w/ Butt Doors

    (BSFD-BD) Vanity Base Sink Full Door w/ Butt Doors

    CABINET CODE: BSFD-BD (CSBSFD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  24″ to 36″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 18″ to 30″ in 1/16″ increments

    TO ORDER: Indicate BSFD + width + height . IE: BSFD3634.5 for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Sink cabinet with full height butt double doors. No shelves. 21″ deep is standard, any other depth is optional and must be specified.

Vanity Cabinets – Full Door

Full door vanities can be used as sink cabinets with no false drawer or as linen cabinets to store towels and other bath essentials.

  • (VBF) Vanity Base Full Door w/Single Door

    (VBF) Vanity Base Full Door w/Single Door

    CABINET CODE: VBF (CSBFD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 9″ to 24″ in 1/16″ increments
    Height: 10 to 48″  in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VBF + width + height. IE: VBF1834.5 for a 18 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base with full door, 2 shelves.

  • (VBF-BD) Vanity Base Full Door w/Butt Doors

    (VBF-BD) Vanity Base Full Door w/Butt Doors

    CABINET CODE: VBF_BD (CSBFD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 10 to 48″  in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VBF + width + height + BD. IE: VBF3034.5BD for a 30 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity base with full doors, 2 shelves.

Vanity Cabinets – Drawer

Drawer cabinets are perfect for either side of a sink base to add storage for hair dryers, curling irons, razors and more. With a broad selection of drawer base vanities, you can create an exquisite bath design for a bathroom of any size.

  • (V3D) Vanity Drawer Base w/3 Drawers

    (V3D) Vanity Drawer Base w/3 Drawers

    CABINET CODE: V3D (CSB3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate V3D + width + height. IE: V3D1834.5 for a 18 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity drawer stack with 3 drawers.  When height changes, only lower opening changes. Upper drawer openings remain fixed at 5″ and 8″

  • (V4D) Vanity Drawer Base w/4 Drawers

    (V4D) Vanity Drawer Base w/4 Drawers

    CABINET CODE: V4D  (CSB4D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 39″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate V4D + width + height. IE: V4D1834.5 for a 18 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity drawer stack with 4 drawers. When height changes, only lower opening changes. Upper drawer openings remain fixed at 5″

Vanity Cabinets – Combination

Combination vanities incorporate the sink area with sets of drawers. This is a great way to keep your bathroom cost down as you can put all your storage in to a single cabinet instead of 2 or 3 cabinets joined together.

  • (VCL) Vanity Combination Left w/Single Door

    (VCL) Vanity Combination Left w/Single Door

    CABINET CODE: VCL (CSVCL will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 30″ to 36″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCL + width + height. IE: VCL3034.5 for a 30 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with sink area to Right and drawers to Left. Sink can be centered or left justified. No shelves. False top drawer. When width changes, door openings change while lower drawers stay fixed at 12″ wide

  • (VCL-BD) Vanity Combination Left w/Butt Doors

    (VCL-BD) Vanity Combination Left w/Butt Doors

    CABINET CODE: VCL_BD (CSVCL will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCL + width + height + BD. IE: VCL4234.5 for a 42 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with double door sink area to Right and drawers to Left. Sink can be centered or left justified. No shelves. False top drawer. When width changes, door openings change while lower drawers stay fixed at 12″ wide. Door hinged on center stile uses 1/2″ overlay hinges

  • (VCR) Vanity Combination Right w/Single Door

    (VCR) Vanity Combination Right w/Single Door

    CABINET CODE: VCR (CSVCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 30″ to 36″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCR + width + height. IE: VCR3034.5 for a 30 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with sink area to Left and drawers to Right. Sink can be centered or left justified. No shelves. False top drawer. When width changes, door openings change while lower drawers stay fixed at 12″ wide

  • (VCR-BD) Vanity Combination Right w/Butt Doors

    (VCR-BD) Vanity Combination Right w/Butt Doors

    CABINET CODE: VCR_BD (CSVCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCR + width + height + BD. IE: VCR4234.5 for a 42 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with double door sink area to Left and drawers to Right. Sink can be centered or left justified. No shelves. False top drawer. When width changes, door openings change while lower drawers stay fixed at 12″ wide. Door hinged on center stile uses 1/2″ overlay hinges

  • (VC3DL) Vanity Combo 3 Drawer Left

    (VC3DL) Vanity Combo 3 Drawer Left

    CABINET CODE: VC3DL (CSVC3DL will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VC3DL + width + height. IE: VC3DL4234.5 for a 42 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with single door sink area to Right and drawers to Left. No shelves. When width changes, door and false door openings remain fixed. Door hinged on center stile uses 1/2″ overlay hinges.

  • (VC3DL-BD) Vanity Combo 3 Drawer Left w/Butt Doors

    (VC3DL-BD) Vanity Combo 3 Drawer Left w/Butt Doors

    CABINET CODE: VC3DLBD (CSVC3DLBD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VC3DL + width + height + BD. IE: VC3DL4234.5BD for a 42 W x 34.5 H cabinet with butt doors. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with single door sink area to Right and drawers to Left. No shelves. When width changes, door and false door openings remain fixed. Door hinged on center stile uses 1/2″ overlay hinges.

  • (VC3DR) Vanity Combo 3 Drawer Right

    (VC3DR) Vanity Combo 3 Drawer Right

    CABINET CODE: VC3DL (CSVC3DL will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VC3DR + width + height. IE: VC3DR4234.5 for a 42 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with single door sink area to Left and drawers to Right. No shelves. When width changes, door and false door openings remain fixed. Door hinged on center stile uses 1/2″ overlay hinges.

  • (VC3DR-BD) Vanity Combo 3 Drawer Right w/Butt Doors

    (VC3DR-BD) Vanity Combo 3 Drawer Right w/Butt Doors

    CABINET CODE: VC3DRBD (CSVC3DRBD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VC3DR + width + height + BD. IE: VC3DR4234.5BD for a 42 W x 34.5 H cabinet with butt doors. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with single door sink area to Left and drawers to Right. No shelves. When width changes, door and false door openings remain fixed. Door hinged on center stile uses 1/2″ overlay hinges.

  • (VCFD3DL) Vanity Combo Full Door 3 Drawer Left

    (VCFD3DL) Vanity Combo Full Door 3 Drawer Left

    CABINET CODE: VCFD3DL (CSVCFD3DL will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments

    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCFD3DL + width + height + BD. IE: VCFD3DL3634.5 for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with 3 drawers to the left and a full door under sink area. Sink bowl must be off center, cannot be centered in cabinet.

  • (VCFD3DL-BD) Vanity Combo Full Door 3 Drawer Left, Butt doors

    (VCFD3DL-BD) Vanity Combo Full Door 3 Drawer Left, Butt doors

    CABINET CODE: VCFD3DLBD (CSVCFD3DLBD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCFD3DLBD + width + height + BD. IE: VCFD3DLBD3634.5 for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with 3 drawers to the left and butt doors under sink area. Sink bowl must be off center, cannot be centered in cabinet. For full overlay, door mounted to center cabinet stile must use 1/2″ overlay hinges.

  • (VCFD3DR) Vanity Combo Full Door 3 Drawer Right

    (VCFD3DR) Vanity Combo Full Door 3 Drawer Right

    CABINET CODE: VCFD3DR (CSVCFD3DR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCFD3DR + width + height + BD. IE: VCFD3DR3634.5 for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with 3 drawers to the left and a single door under sink area. Sink bowl must be off center, cannot be centered in cabinet.

  • (VCFD3DR-BD) Vanity Combo Full Door 3 Drawer Right w/Butt Doors

    (VCFD3DR-BD) Vanity Combo Full Door 3 Drawer Right w/Butt Doors

    CABINET CODE: VCFD3DRBD (CSVCFD3DRBD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 36″ to 48″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VCFD3DRBD + width + height + BD. IE: VCFD3DRBD3634.5 for a 36 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with 3 drawers to the left and butt doors under sink area. Sink bowl must be off center, cannot be centered in cabinet. For full overlay, door mounted to center cabinet stile must use 1/2″ overlay hinges.

  • (VC6D) Vanity Combination 6 Drawers w/Butt Doors

    (VC6D) Vanity Combination 6 Drawers w/Butt Doors

    CABINET CODE: VC6D_BD (CSVC6D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 48″ to 72″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VC6D + width + height + BD. IE: VC6D6034.5 for a 60 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with sink area between two drawer banks.  No shelves. False top drawer. When width changes, door and drawer openings change. Doors hinged on center stiles uses 1/2″ overlay hinges

  • (VC3D) Vanity Combination 3 Drawer w/Butt Doors

    (VC3D) Vanity Combination 3 Drawer w/Butt Doors

    CABINET CODE: VC3D_BD (CSVC3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 48″ to 72″ in 1/16″ increments
    Height: 31.5 to 34.5″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VC3D + width + height + BD. IE: VC3D6034.5 for a 60 W x 34.5 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Vanity cabinet with 2 sink areas flanking a centered drawer bank. No shelves. False top drawer. When width changes, door openings change, drawer area fixed at 9″ wide opening. Doors hinged on center stiles uses 1/2″ overlay hinges

Vanity Cabinets – Tall

These tall linen type cabinets offer you the ideal storage solution for towels, toiletries or even your laundry hamper. They are especially practical if your bathroom does not have a built in linen closet. NOTE: Available in Advantage Plywood Cabinet Only!

  • (VL3B) Vanity Linen 3 Drawer Base Height, Single Door

    (VL3B) Vanity Linen 3 Drawer Base Height, Single Door

    CABINET CODE: VL3B (CSU3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84 to 120 in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VL3B + width + height. IE: VL3B1884 for a 18″ W x 84″ high cabinet. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with single upper door and 3 drawers. Drawers align with Base height (34.5″) cabinets. Shelves in upper section. Drawers are dissimilar in size (small/bigger/biggest). 21″ deep is standard, other depths available but must be requested

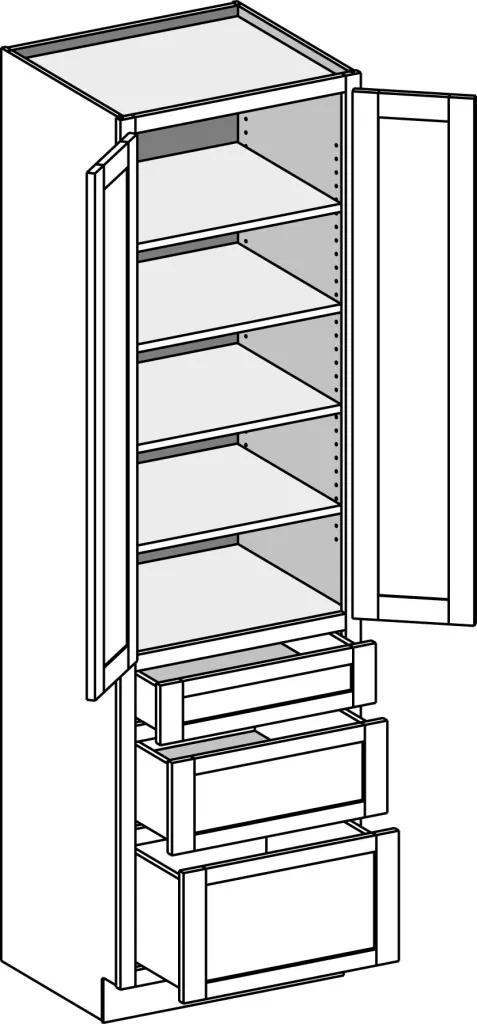

  • (VL3B-BD) Vanity Linen 3 Drawer Base Height, Butt Doors

    (VL3B-BD) Vanity Linen 3 Drawer Base Height, Butt Doors

    CABINET CODE: VL3B_BD (CSU3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24 to 36″ in 1/16″ increments
    Height: 84 to 120 in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VL3B + width + height +BD. IE: VL3B2484BD for a 24″ W x 84″ high cabinet. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with Butt upper doors and 3 drawers. Drawers align with Base height (34.5″) cabinets. Shelves in upper section. Drawers are dissimilar in size (small/bigger/biggest). 21″ deep is standard, other depths available but must be requested

  • (VL3V) Vanity Linen 3 Drawer Vanity Height, Single Door

    (VL3V) Vanity Linen 3 Drawer Vanity Height, Single Door

    CABINET CODE: VL3V (CSVL3V will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VL3V + width + height. IE: VL3V2484 for a 24″ W x 84″ high cabinet. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with single upper door and 3 drawers. Drawers align with Vanity height (31.5″) cabinets. Shelves in upper section. Drawers are dissimilar in size (small/bigger/biggest). 21″ deep is standard, other depths available but must be requested

  • (VL3V-BD) Vanity Linen 3 Drawer Vanity Height, Butt Doors

    (VL3V-BD) Vanity Linen 3 Drawer Vanity Height, Butt Doors

    CABINET CODE: VL3V_BD (CSVL3V will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24 to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27, or 30″ deep only. 21″ is standard unless otherwise specified. Cabinets in 12, 15, 27 or 30″ depths are available with Tandem Soft Close drawer glides only.

    TO ORDER: Indicate VL3V + width + height + BD. IE: VL3V3084BD for a 30″ W x 84″ high cabinet. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with single upper door and 3 drawers. Drawers align with Vanity height (31.5″) cabinets. Shelves in upper section. Drawers are dissimilar in size (small/bigger/biggest). 21″ deep is standard, other depths available but must be requested

  • (VLB) Vanity Linen Cabinet Base Height, Single Door

    (VLB) Vanity Linen Cabinet Base Height, Single Door

    CABINET CODE: VLB (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12 to 24″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments. 21″ deep is standard, other depths must be specified

    TO ORDER: Indicate VLB + width + height. IE: VLB1884 for a 18″ W x 84″ high cabinet. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with single upper and lower door. Lower door aligns with Base height (34.5″) cabinets. Shelves in both sections. 21″ deep is standard, other depths available but must be requested

  • (VLB-BD) Vanity Linen Cabinet Base Height w/Butt Doors

    (VLB-BD) Vanity Linen Cabinet Base Height w/Butt Doors

    CABINET CODE: VLB_BD (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24 to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments. 21″ deep is standard, other depths must be specified

    TO ORDER: Indicate VLB + width + height + BD. IE: VLB2484BD for a 24″ W x 84″ high cabinet with butt doors. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with butt upper and lower doors. Lower doors align with Base height (34.5″) cabinets. Shelves in both sections. 21″ deep is standard, other depths available but must be requested.

  • (VLV) Vanity Linen Cabinet Vanity Height w/Single Door

    (VLV) Vanity Linen Cabinet Vanity Height w/Single Door

    CABINET CODE: VLV (CSVLV will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24 in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments. 21″ deep is standard, other depths must be specified

    TO ORDER: Indicate VLV + width + height. IE: VLV1884 for a 18″ W x 84″ high cabinet with butt doors. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with single upper and lower doors. Lower door aligns with Vanity height (31.5″) cabinets. Shelves in both sections. 21″ deep is standard, other depths available but must be requested.

  • (VLV-BD) Vanity Linen Cabinet Vanity Height w/Butt Doors

    (VLV-BD) Vanity Linen Cabinet Vanity Height w/Butt Doors

    CABINET CODE: VLV_BD (CSVLV will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24 to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments. 21″ deep is standard, other depths must be specified

    TO ORDER: Indicate VLV + width + height + BD. IE: VLV2484BD for a 24″ W x 84″ high cabinet with butt doors. If depth other than standard 21″ is required, note as special instruction.

    DESCRIPTION: Linen cabinet with butt upper and lower doors. Lower doors align with Vanity height (31.5″) cabinets. Shelves in both sections. 21″ deep is standard, other depths available but must be requested.

  • (VUC) Vanity Utility Cabinet w/Single Door

    (VUC) Vanity Utility Cabinet w/Single Door

    CABINET CODE: VUC (CSUC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VUC + width + height. IE: VUC2484 for a 24 W x 84 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Tall Linen closet with shelves, short upper door with larger lower door. Lower opening height is always 56″ regardless of cabinet height.

  • (VUC-BD) Vanity Utility Cabinet w/Butt Doors

    (VUC-BD) Vanity Utility Cabinet w/Butt Doors

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: VUC_BD (CSUC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 5.5″ to 30″ in 1/16″ increments

    TO ORDER: Indicate VUC + width + height + BD. IE: VUC3084BD for a 30 W x 84 H cabinet. If depth other than standard 21″ is desired, note as special instruction.

    DESCRIPTION: Tall Linen closet with shelves, short upper butt doors with larger lower butt doors. Lower opening height is always 56″ regardless of cabinet height.

Vanity Cabinets – Wall/Medicine

We offer a wide variety of medicine cabinets, over-john cabinets and shallow wall cabinets specifically designed for use in a bathroom setting. These cabinets add practical storage and added flair to your bathroom design.

  • (VW) Vanity Wall Cabinet

    (VW) Vanity Wall Cabinet

    CABINET CODE: VW  (CSW will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 9 to 36″ in 1/16″ increments
    Height: 12 to 48″ in 1/16″ increments
    Depth: 5.5″ to 27″ in 1/16″ increments. 5-1/2″ is standard

    TO ORDER: Indicate VW + width  + height. IE: VW1830 for a 18″ wide cabinet. If depth other than standard 5.5″ is required, specify as special instruction. Butt doors are optional on 24″ wide version and must be specified. Wider than 24 will be Butt doors automatically.

    DESCRIPTION: Wall cabinet with door(s). Typically used as medicine cabinet over Toilet.

  • (VWS) Vanity Wall Cabinet w/Shelf, Butt Doors

    (VWS) Vanity Wall Cabinet w/Shelf, Butt Doors

    CABINET CODE: VWS (CSVWS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24 to 36″ in 1/16″ increments
    Height: 24 to 48″ in 1/16″ increments
    Depth: 5.5″ to 12-1/2″ in 1/16″ increments. 8″ is standard

    TO ORDER: Indicate VWS + width  + height + BD. IE: VWS2430BD for a 24″ wide x 36″ high cabinet. If depth other than standard 8″ is required, specify as special instruction.

    DESCRIPTION: Wall cabinet with butt door. Typically used as medicine cabinet over Toilet. Lower area features shelf. 8″ High bottom opening. In order to get lower section in matching wood/finish, be sure to order Matching Interior option

Vanity Cabinets - Floating

Floating vanities are installed 'suspended' off the floor (no toe kick). They are built with a more robust back to ensure strength. For a really contemporary look, consider using with flat doors such as Savoy, Astoria or Flush Batten.

  • (WHV) Wall Hung Vanity – Single Door

    (WHV) Wall Hung Vanity – Single Door

    CABINET CODE: WHV (CSWHV will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES
    Width: 21″ thru 24″ in 1/16″ increments IF ORDERING OVER 24″ WIDE, MUST SPECIFY SINGLE DOOR!! Door will not be bored (intended to flip up) and no hinges supplied.
    Height: 18 to 24″ in 1/16″ increments
    Depth: 18 and 21 in 1/16″ increments

    TO ORDER: Indicate WHV + the cabinet width  + cabinet height. IE: WHV2418 for a 24 W x 18 H cabinet. If other than standard 21″ depth, indicate depth in Special Instructions.

    DESCRIPTION: Single Door door Vanity cabinet meant to be suspended off the floor/mounted to wall. Includes two pre-cut 2” X 4” installation cleats. Advantage plywood cabinet line only. The load capacity of these cabinets is greatly dependent on the quality of the installation screws and whether the cabinets are secured into the wall studs, If not secured into two or more studs, using high quality installation screws the cabinet may not support the desired weight. Conestoga/CabinetJoint are not responsible for failure due to improper installation technique/material.

  • (WHV-BD) Wall Hung Vanity – Butt Doors

    (WHV-BD) Wall Hung Vanity – Butt Doors

    CABINET CODE: WHV_BD (CSWHV will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES
    Width: 24″ thru 36″ in 1/16″ increments
    Height: 18 to 24″ in 1/16″ increments
    Depth: 18 and 21″ in 1/16″ increments

    TO ORDER: Indicate WHV + the cabinet width + cabinet height + BD. IE: WHV3018BD for a 30 W x 18 H cabinet. If other than standard 21″ depth, indicate depth in Special Instructions.

    DESCRIPTION: 2 door butt door (no center stile) Vanity cabinet meant to be suspended off the floor/mounted to wall. Includes two pre-cut 2” X 4” installation cleats.  Advantage plywood cabinet line only. The load capacity of these cabinets is greatly dependent on the quality of the installation screws and whether the cabinets are secured into the wall studs, If not secured into two or more studs, using high quality installation screws the cabinet may not support the desired weight. Conestoga/CabinetJoint are not responsible for failure due to improper installation technique/material.

  • (WHVCS) Wall Hung Vanity – Double Door

    (WHVCS) Wall Hung Vanity – Double Door

    CABINET CODE: WHVCS (CSWHVCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES
    Width: 27″ thru 48″ in 1/16″ increments
    Height: 18 to 24″ in 1/16″ increments
    Depth: 18 and 21 in 1/16″ increments

    TO ORDER: Indicate WHVCS + the cabinet width + cabinet height. IE: WHVCS3018 for a 30 W x 18 H cabinet. If other than standard 21″ depth, indicate depth in Special Instructions.

    DESCRIPTION: 2 door Vanity cabinet meant to be suspended off the floor/mounted to wall. Includes two pre-cut 2” X 4” installation cleats. Advantage plywood cabinet line only. The load capacity of these cabinets is greatly dependent on the quality of the installation screws and whether the cabinets are secured into the wall studs, If not secured into two or more studs, using high quality installation screws the cabinet may not support the desired weight. Conestoga/CabinetJoint are not responsible for failure due to improper installation technique/material.

  • (WHV2D) Wall Hung Vanity – 2 Drawers

    (WHV2D) Wall Hung Vanity – 2 Drawers

    CABINET CODE: WHV2D (CSWHV2D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES
    Width: 21″ thru 36″ in 1/16″ increments
    Height: 18 to 24″ in 1/16″ increments
    Depth: 18, 21 only

    TO ORDER: Indicate WHV2D + the cabinet width + cabinet height. IE: WHV2D3018 for a 30 W x 18 H cabinet. If other than standard 21″ depth, indicate depth in Special Instructions.

    DESCRIPTION: 2 drawer cabinet meant to be suspended off the floor/mounted to wall. Includes two precut 2” X 4” installation cleats. Tandem slides only. Advantage plywood cabinet line only. The load capacity of these cabinets is greatly dependent on the quality of the installation screws and whether the cabinets are secured into the wall studs, If not secured into two or more studs, using high quality installation screws the cabinet may not support the desired weight. Conestoga/CabinetJoint are not responsible for failure due to improper installation technique/material.
