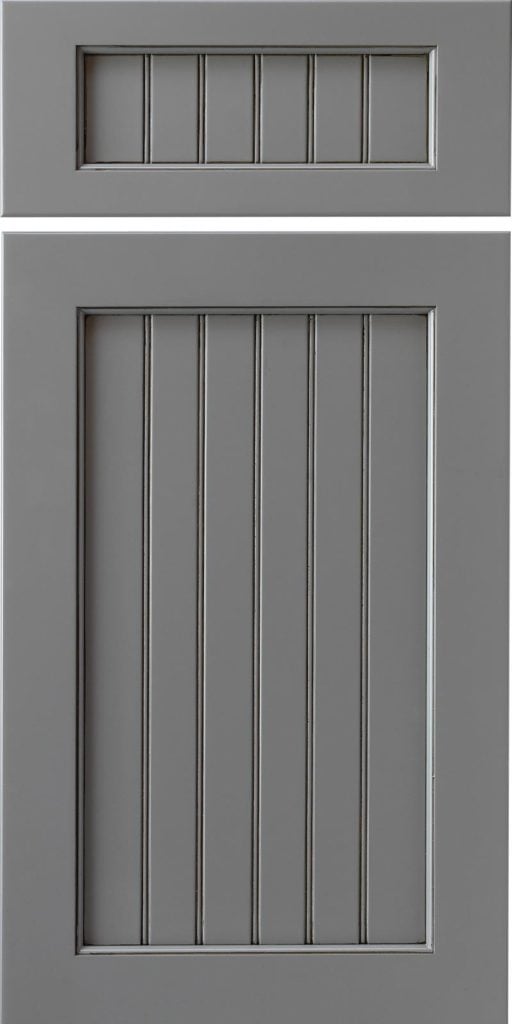

Yardley (MDF)

Yardley (MDF)

A popular door in the Conestoga (CWS) Grooved Panel Collection, the Yardley features the G-012 rout on a 1-1/2″ spacing (other spacing available upon request), which can be customized by adding any of the available framing beads. To increase the overall durability of painted finishes on this door style, CWS created an aesthetically identical door to the standard Yardley, but one that is made out of full MDF (Medium Density Fiberboard) using five-piece construction and mortise and tenon joints. If you like the Yardley, but selected a painted finish, then consider the Yardley (MDF).

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.







Door Design Yardley
Panel Raise Design Specific
Framing Bead Regular
Edge Profile L-149
Specie MDF
Finish Metro Grey Colourtone with Coffee Glaze
Drawer Front Design Yardley
Drawer Front Panel Raise Design Specific

Available Profiles

Edge Profiles:B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.
Framing Beads:All 3/4" profiles available.
Panels Raises:None - Design Specific, no options.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:All available. (note: Paint Grade Hard Maple used for mullion lite strips and #52, #906, & #907 glass retainer moldings.)
Wainscot Panels:Yes
Pegs and Grooves:Grooves - All available.
Appliance Panels:Yes - Apply over 1/4" MDF panel.
Door Frame Modifications:Width modifications are available.
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF

Available Drawer Fronts
