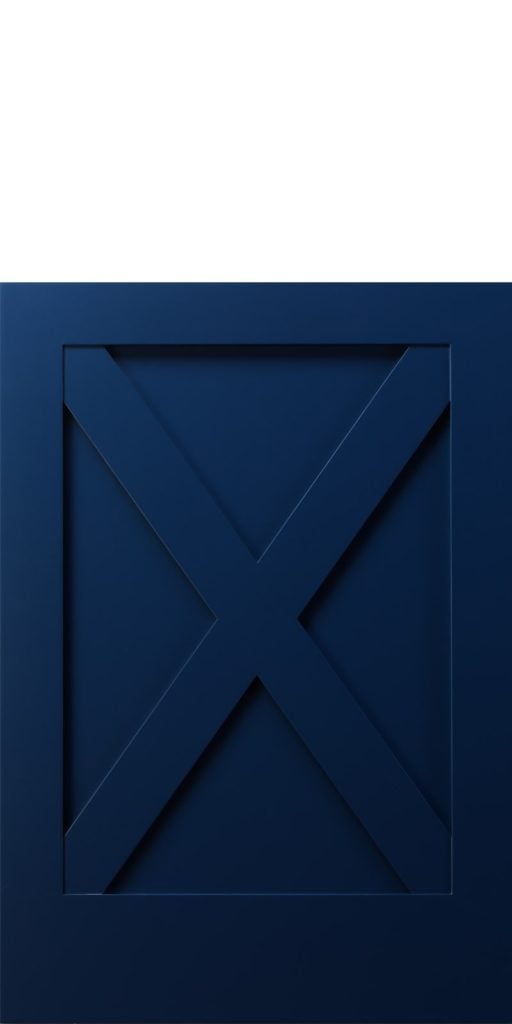

X Side Panel

X Side Panel
  • 1″ thick X Side decorative panels are available as both open frame and with a plywood center panel.
  • The X Side overlay has numerous applications including: single panel wall and base end panel overlays, double panel upright refrigerator end panel overlays, and 2 and 3 panel side by side wainscot panel overlays.
  • Stiles, top rail and diagonal cross members are 3″ wide, bottom rail is 6″ wide. All exterior framing can be modified in width, but diagonal cross members are fixed at 3″ in width.



Door Design X Side
Panel Raise No
Framing Bead No
Edge Profile No
Specie Paint Grade
Finish Regent Blue
Drawer Front Design No
Drawer Front Panel Raise No

Available Profiles

Edge Profiles:All designs – all 1" profiles available.
Framing Beads:All designs – design specific, no options available.
Panels Raises:All designs – 1/4" veneered panel only.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:X Side Panel – frame only mullions not available. X Side Open – mullions not available.
Wainscot Panels:Yes
Pegs and Grooves:All options available except panel grooves.
Appliance Panels:Apply over plywood.
Door Frame Modifications:Yes
Hinges/Hinge Boring:Yes
