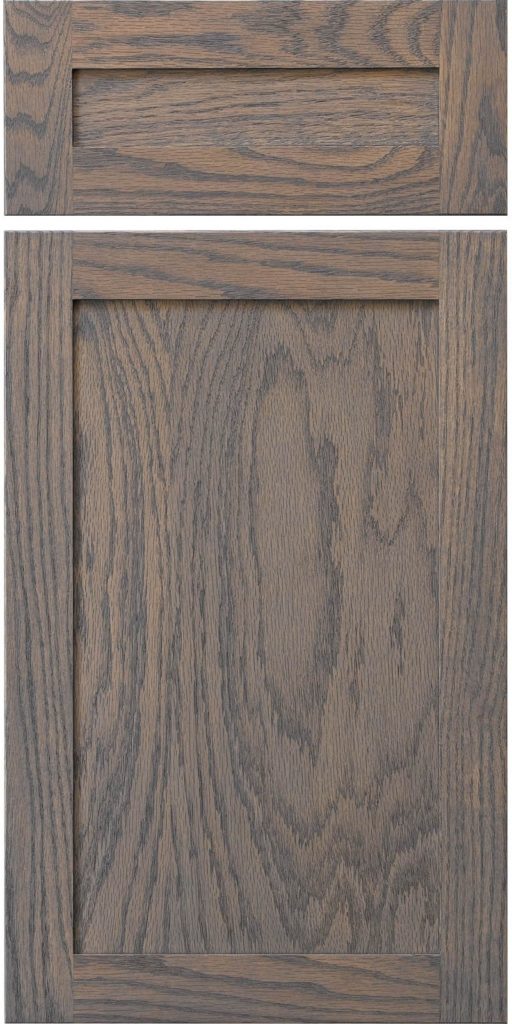

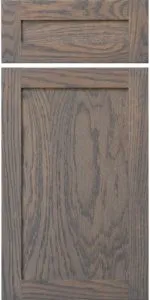

The TW-10916 is a veneered panel door which uses a 7/16″ thick veneered center panel to give the door a heavier feel than the simple 1/4″ thick veneer panel doors. It is important to note that the drop from the framing to the panel face is shallower on this door than a standard door (1/8″ drop instead of 3/8″).

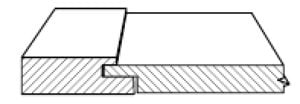

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.
Door Design
TW10916
Panel Raise
9/16″ Veneered Panel
Framing Bead
Design Specific
Edge Profile
L-149
Specie
Standard Red Oak
Finish
Driftwood
Drawer Front Design
TW10916
Drawer Front Panel Raise
Design Specific
Available Profiles Edge Profiles: All 3/4" profiles available. Framing Beads: None - Design specific, no options. Panels Raises: None - 9/16" veneered panel only
Available Profiles PDF Available Design Options Mullion/Frame only Doors: No - For mullions or frame only, order TW-10 door with: ME Edge, Square Framing Bead, and then frame only or mullion option as desired. Wainscot Panels: Yes Pegs and Grooves: Yes - Limited groove options. Appliance Panels: Yes - Apply over plywood. Door Frame Modifications: Yes Hinges/Hinge Boring: Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF Helpful Information and Design Tips
Door is not available with mullions. In order to receive mullions, door must be ordered as a TW-10. Be sure to request narrower framing on the mullion door so that the framing matches that of the rest of the kitchen!
Door uses ‘Tudor’ framing where the face of the door’s frame is narrower than the back. Any framing dimensions are as measured from the back of the door. As a result, the face of the door only has 1-15/16″ wide framing instead of 2-1/4″ as with our ‘normal’ mortise and tenon doors.
