TW-10 (MDF)

The TW-10 is a popular Conestoga (CWS) traditional flat panel door, with a 1/4″ thick center panel, that can easily be dressed up by selecting an edge profile and/or framing bead (note: no panel raise options available). To promote this door for painted finishes, Conestoga (CWS) created the TW-10 (MDF). This full MDF door, which uses five-piece mortise and tenon joinery, now affords customers the benefits of MDF combined with the almost endless design profiles of the TW-10 door.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

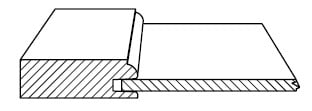

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.

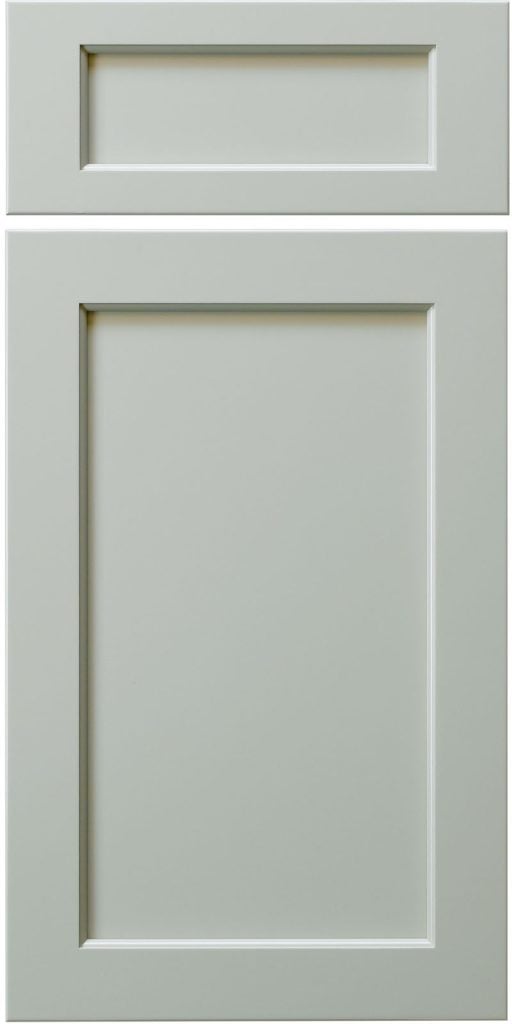

Door Design TW10
Panel Raise 1/4″ MDF panel
Framing Bead Regular
Edge Profile L-149
Specie MDF
Finish Hearthstone Grey
Drawer Front Design TW10
Drawer Front Panel Raise Design Specific

Available Profiles

Edge Profiles:B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.
Framing Beads:All 3/4" profiles available.
Panels Raises:None - Design Specific, no options.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:All available. (note: Paint Grade Hard Maple used for mullion lite strips and #52, #906, & #907 glass retainer moldings.)
Wainscot Panels:Yes
Pegs and Grooves:Grooves - All available.
Appliance Panels:Yes - Apply over 1/4" MDF panel.
Door Frame Modifications:Width modifications are available
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF
