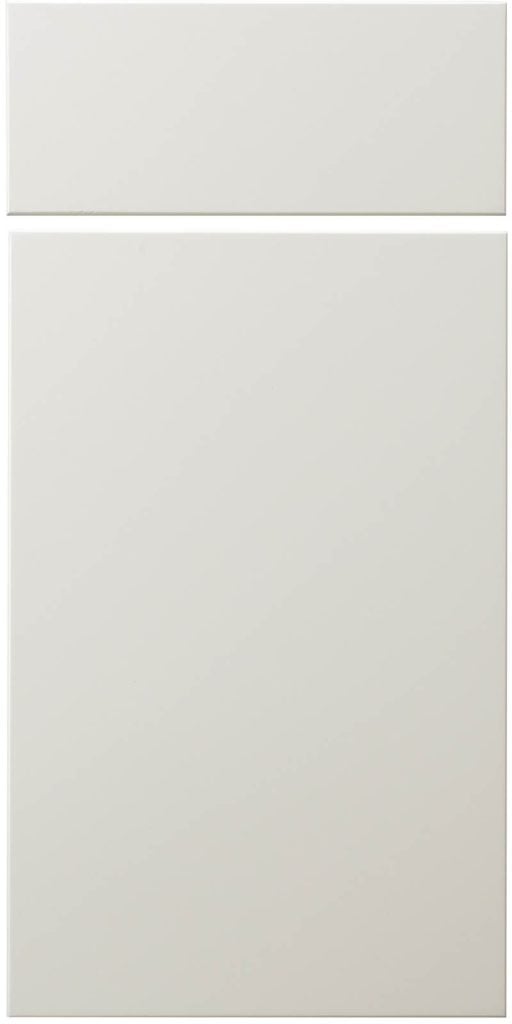

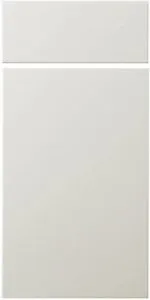

Slab (MDF)

The Slab (MDF) model is a one-piece, solid MDF (Medium Density Fiberboard) door designed for our customers who require a simple, more contemporary painted door for their kitchen cabinets. This model door is available in both 3/4″ thick & 1″ thick options.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.

Slab Cross




Door Design Slab
Panel Raise N/A
Framing Bead N/A
Edge Profile L-149
Specie MDF
Finish Frosty White
Drawer Front Design Slab
Drawer Front Panel Raise N/A

Available Profiles

Edge Profiles:3/4" thick doors: B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.

1" thick doors: B-2, C-2, H-2, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME, PRS-2, & V-2.
Framing Beads:None - Design Specific, no options.
Panels Raises:None - Design Specific, no options.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:None - For Frame only, order a routed MDF door & request the Frame Only option.
Wainscot Panels:No
Pegs and Grooves:No
Appliance Panels:Yes - Apply over plywood or 1/4" MDF panel.
Door Frame Modifications:N/A
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF
