Radcliffe

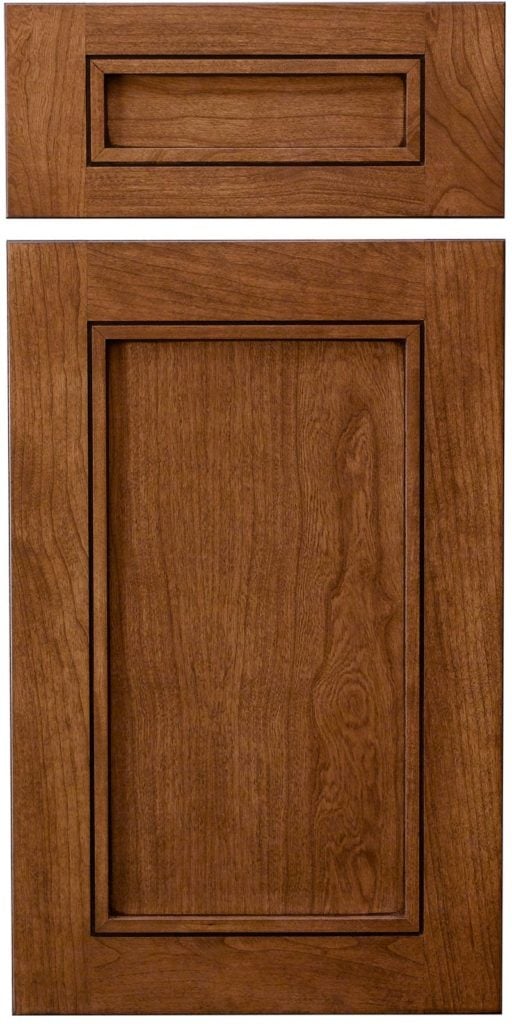

The Radcliffe is an applied molding door, although the door’s look would belie this. The molding is actually installed right to the framing bead area and does not rise above the face of the door’s frame, so it is very understated. The molding creates a ‘trough’ or deep groove at the framing bead area. It holds glaze well but is a unique design, so we suggest ordering a door sample before ordering a full job, just to be sure this door creates the design look you are expecting. Not available in inset.

The cross-section below is an example of how your door will look, but the profiles you choose will determine the final look of your door.







Door Design Radcliffe
Panel Raise 1/4″ Veneered Panel
Framing Bead Design Specific
Edge Profile Design Specific
Specie Cherry
Finish Colonial with Sable Glaze
Drawer Front Design Radcliffe
Drawer Front Panel Raise No

Available Profiles

Edge Profiles:Yes - Standard as shown (L-966), all other 3/4" profiles available.
Framing Beads:None - Design specific, no options.
Panels Raises:None - 1/4" veneered panel only.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:Yes - Mullion and frame only available, up-charge applies, also incurs special lite charges. Mullions are square bead.
Wainscot Panels:Yes
Pegs and Grooves:All, except G-121 panel groove.
Appliance Panels:Yes - Apply over plywood.
Door Frame Modifications:Yes - Width modifications are available.
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF

Available Drawer Fronts
