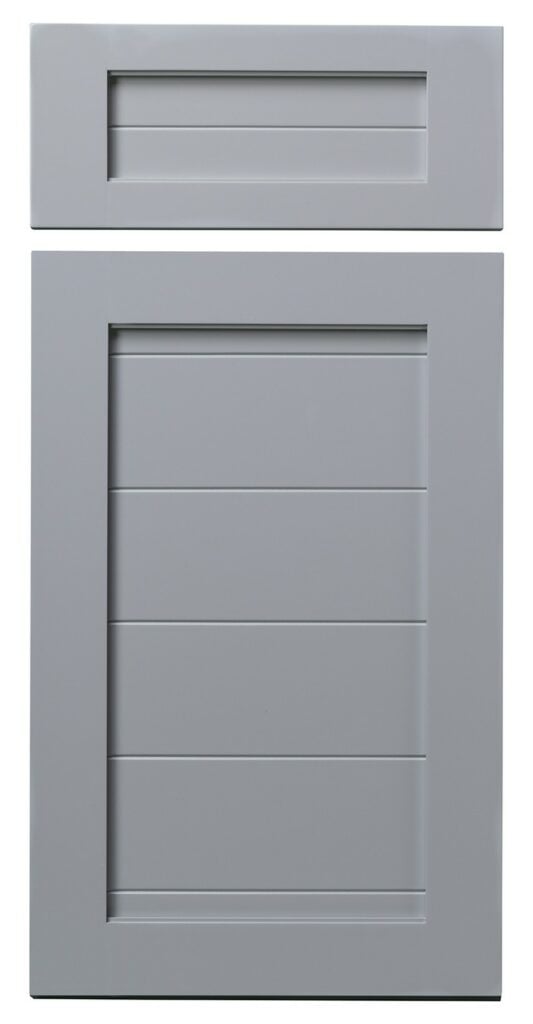

erikson blue cabinet door

We all know that shiplap walls and furniture are all the rage in interior design, but did you know that shiplap actually originated over 1,000 years ago for use on Viking ships? To keep with the namesake, we introduce to you the Erikson shiplap design.  Available in both solid and plywood panel versions with matching drawer fronts, the Erikson and EriksonPP feature horizontal graining. Grooves begin at the midpoint of the panel and repeat every 4” to give that shiplap appearance. With Square Bead framing on the stiles, and the F-557 framing bead on the rails, the Erikson allows you select from numerous edge profiles and custom framing widths to achieve the custom look you are going for

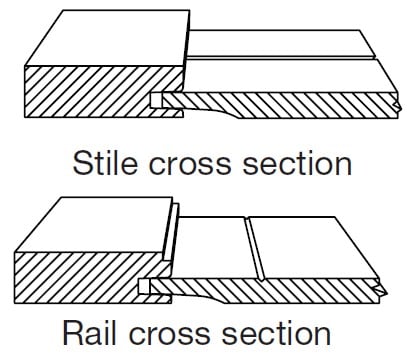

The cross section below shows how your door will look:



Species available: All 3/4″ species available except Rustic Knotty and Soft Maple



Door Design Erikson
Panel Raise Design Specific
Framing Bead Design Specific
Edge Profile Design Specific
Specie Paint Grade Hard Maple
Finish No
Drawer Front Design No
Drawer Front Panel Raise No

Available Profiles

Edge Profiles:All 3/4" profiles available
Framing Beads:Design specific
Panels Raises:NOTE: Erikson and EriksonPP panels that exceed 26" wide and 48" high in either single or multi panel products are not warranted against expansion, warpage, cracking or open framing joints.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:Order as CRP-10 with Square bead framing and Square bead mullions.
Wainscot Panels:yes
Pegs and Grooves:n/a
Appliance Panels:Apply over plywood
Door Frame Modifications:Yes
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF
