CRP-10827 (MDF)

CRP-10827 (MDF)

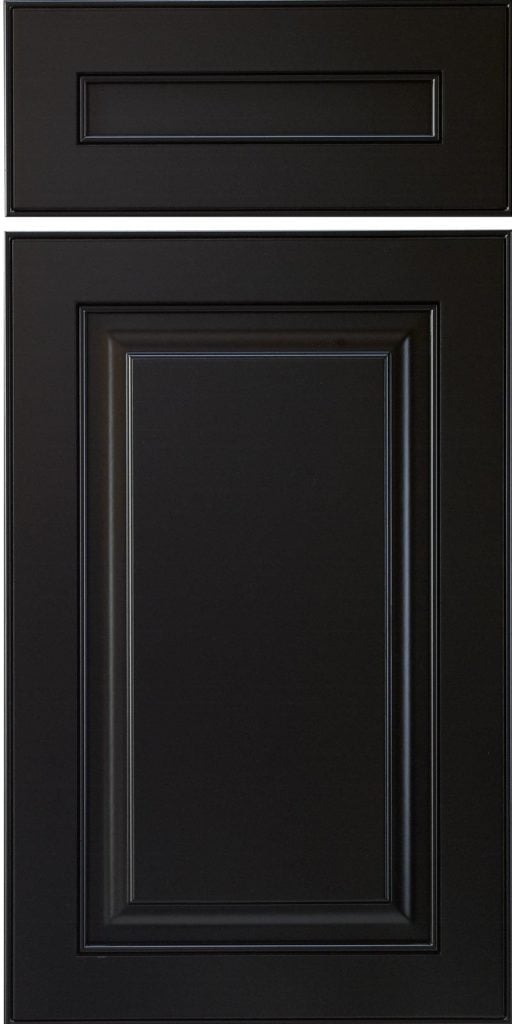

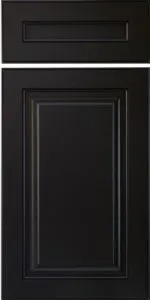

The CRP-10827 model is identical to the CRP10751, except that it features a delicate bead on both the inside & the outside of the frame. This door is NOT AVAILABLE FOR INSET CABINETS, but to make this door a better option for painted finishes, Conestoga (CWS) created the CRP-10827 (MDF). The MDF version of this door features full five-piece MDF construction and mitered joints.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.







Door Design CRP10827
Panel Raise M-Bead
Framing Bead Design Specific
Edge Profile Design Specific
Specie MDF
Finish Ebony Colourtone
Drawer Front Design CRP10827
Drawer Front Panel Raise P-057

Available Profiles

Edge Profiles:None - Design Specific, no options.
Framing Beads:None - Design Specific, no options.
Panels Raises:All 3/4" profiles available except P-106.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:All available, but incur special lite charges. (note: Paint Grade Hard Maple used for mullion lite strips and #52, #906, & #907 glass retainer moldings.)
Wainscot Panels:Yes
Pegs and Grooves:Grooves - All available.
Appliance Panels:Yes - Apply over 1/4" MDF panel.
Door Frame Modifications:Width modifications are available.
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF

Available Drawer Fronts
