CRP-10797 (MDF)

CRP-101728 (MDF)

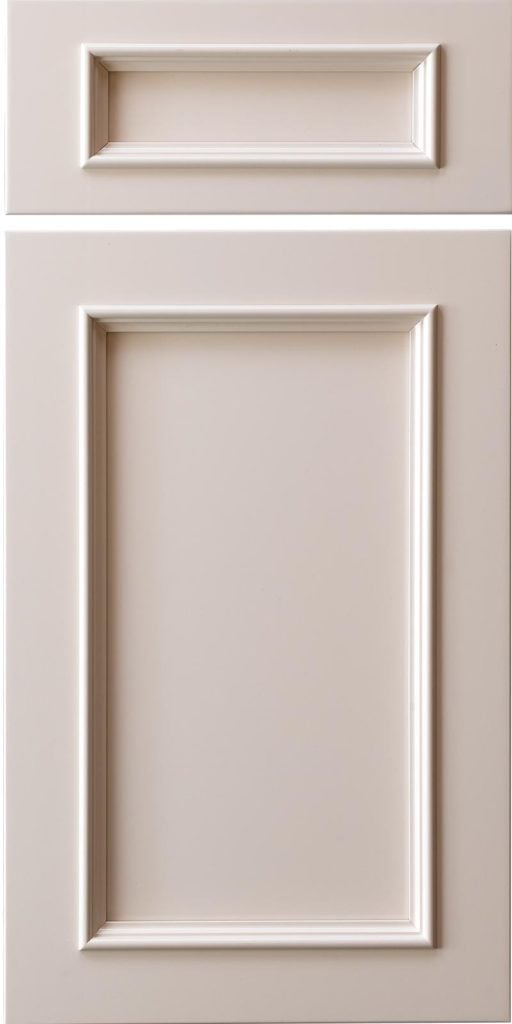

The CRP-10797 is a favorite of the Applied Molding designs because our customers love the delicate, yet obvious molding profile. This door design looks fantastic when combined with a simple, flat Reversed G-Cove for the “raised” center panel profile. To optimize this door for use with painted finishes, Conestoga (CWS) designed the CRP-10797 (MDF). The MDF version of this door touts full, five-piece MDF construction and similar to its wooden brother is a favorite pick for inset cabinetry.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.







Door Design CRP101728
Panel Raise Reverse G-Cove
Framing Bead Design Specific
Edge Profile L-149
Specie MDF
Finish Prism: Faint Coral
Drawer Front Design CRP10797
Drawer Front Panel Raise Reverse G-cove

Available Profiles

Edge Profiles:B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.
Framing Beads:None - Design Specific, no options.
Panels Raises:M-Bead, P-057, P-602, Presidential, Reverse G-Cove, & RM only.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:All available, but incur special lite charges. (note: Paint Grade Hard Maple used for mullion lite strips and #52, #906, & #907 glass retainer moldings.)
Wainscot Panels:Yes
Pegs and Grooves:Grooves - All available.
Appliance Panels:Yes - Apply over 1/4" MDF panel.
Door Frame Modifications:Width modifications are available.
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF

Available Drawer Fronts
