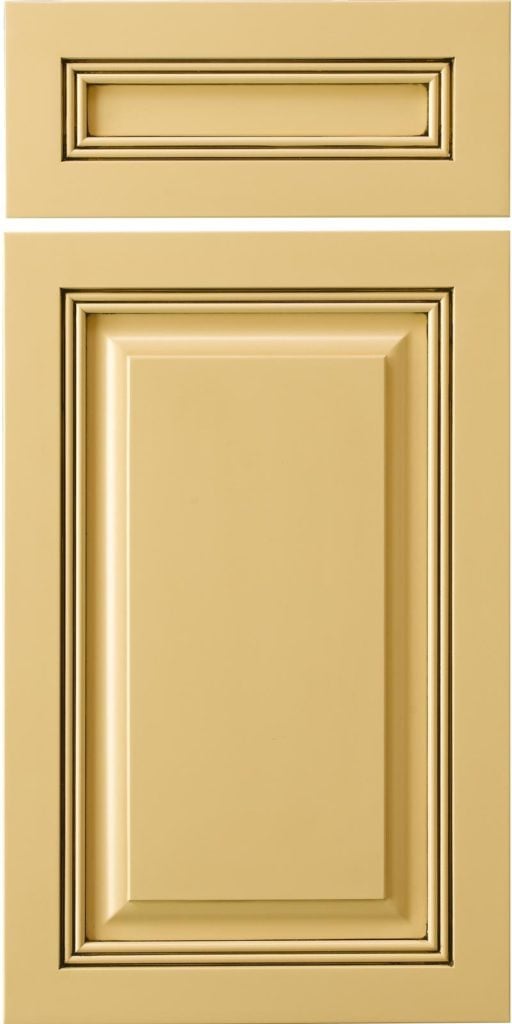

The CRP-10533 door features a double bead on the inside framing bead, which gives it just the right amount of design to be interesting, but not too much that it becomes ‘busy’. If you wish to customize this door, then select an outside edge profile from the available list. To improve this door specifically for painted finishes, Conestoga (CWS) unveiled the CRP-10533 (MDF), whose features include full MDF construction, five-piece miter joints, and a raised center panel.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.







Door Design CRP10533
Panel Raise P-420
Framing Bead Design Specific
Edge Profile L-149
Specie MDF
Finish unknown
Drawer Front Design CRP10533
Drawer Front Panel Raise P-057

Available Profiles

Edge Profiles:B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.
Framing Beads:None - Design Specific, no options.
Panels Raises:All 3/4" profiles available except P-106.
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:All available, but incur special lite charges. (note: Paint Grade Hard Maple used for mullion lite strips and #52, #906, & #907 glass retainer moldings.)
Wainscot Panels:Yes
Pegs and Grooves:Grooves - All available.
Appliance Panels:Yes - Apply over 1/4" MDF panel.
Door Frame Modifications:Width modifications are available.
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF
