30SQ3 (MDF)

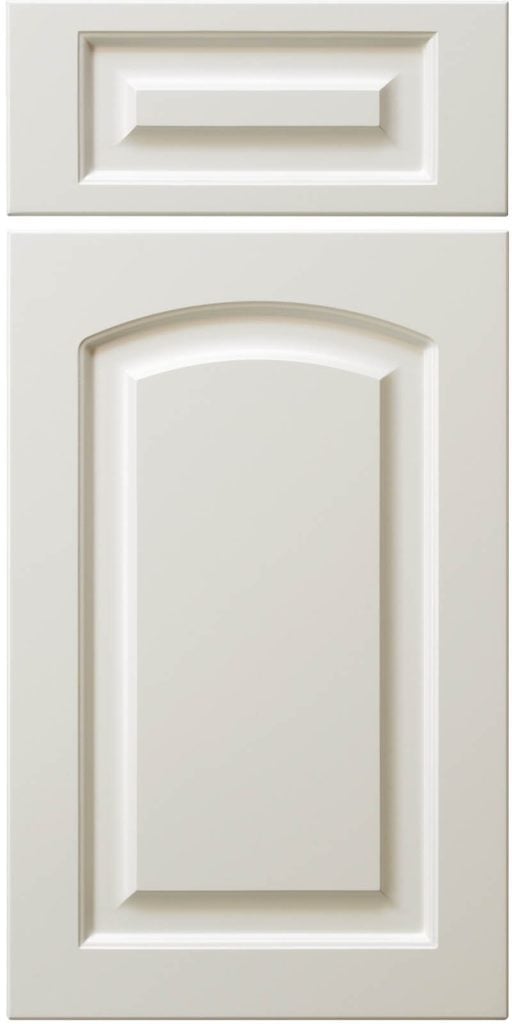

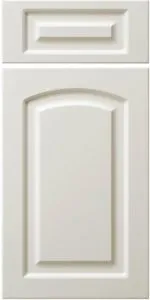

The 30SQ3 (MDF) door is a traditional arch-top door, very similar in appearance to the 30RC (MDF) door, except the top of the 30SQ3 has a slight radius at the corners of the arch. This one-piece, solid MDF (Medium Density Fiberboard) door is an optimal selection for a painted kitchen with a traditional door design.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.

10RC Cross







Door Design 30SQ3
Panel Raise Design Specific
Framing Bead Design Specific
Edge Profile L-149
Specie MDF
Finish Frosty White
Drawer Front Design 10SQ3
Drawer Front Panel Raise Design Specific

Available Profiles

Edge Profiles:B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.
Framing Beads:None - Design Specific, no options. (note: the SQ series are square on the inside of the framing, except the top of the 30SQ3 which has a slight radius at the corners of the arch.)
Panels Raises:None - Design Specific, no options.

(note: MDF products greater than 26" wide or 48" high will be made with two equal panels, unless otherwise specified.)
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:Yes - Standard lite configurations only.
Wainscot Panels:Yes
Pegs and Grooves:No
Appliance Panels:Yes - Apply over plywood or 1/4" MDF panel.
Door Frame Modifications:Yes
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
