2014_20sq3

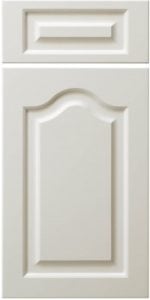

The 20SQ3 (MDF) is the perfect combination of a traditional cathedral top door design and a superb material for painted finishes. Utilizing solid, one-piece MDF (Medium Density Fiberboard) construction this door should be considered for kitchens with painted cabinetry.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.

10RC Cross

Available Profiles

Edge Profiles:B2, C2, E2, H2, J2, LC2, L059, L061, L149, L686, L348, PRS2, V2
Framing Beads:None - Design Specific, no options. (note: the SQ series are square on the inside of the framing.)
Panels Raises:None - Design Specific, no options.

(note: MDF products greater than 26" wide or 48" high will be made with two equal panels, unless otherwise specified.)
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:Yes - Standard lite configurations only.
Wainscot Panels:Yes
Pegs and Grooves:No
Appliance Panels:Yes - Apply over plywood or 1/4" MDF panel.
Door Frame Modifications:Yes
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF
