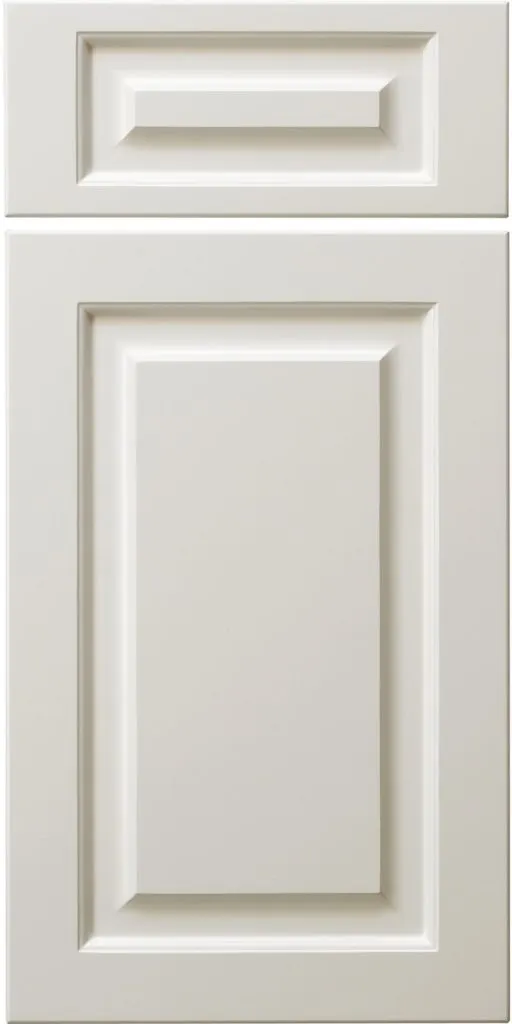

10SQ3 (MDF)
Using a radiused panel raise profile around the center panel, the 10SQ3 (MDF) door appears to be a multi-piece, traditional raised panel wood door; however, is actually a solid, one-piece MDF door. MDF (Medium Density Fiberboard) is great material for doors that are to have a painted finish because it is less prone to expansion & contraction than wood, which results in fewer finish cracks in the paint over time.
- Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
- Also available in raw, unfinished (none – finished by customer) MDF.
The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.
| Door Design | 10SQ3 |
| Panel Raise | Design Specific |
| Framing Bead | Design Specific |
| Edge Profile | L-149 |
| Specie | MDF |
| Finish | Frosty White |

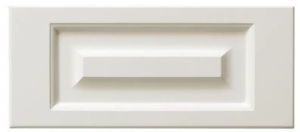

| Drawer Front Design | 10SQ3 |
| Drawer Front Panel Raise | Design Specific |
Available Profiles
| Edge Profiles: | B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2. |
|---|---|
| Framing Beads: | None - Design Specific, no options. (note: the SQ series are square on the inside of the framing.) |
| Panels Raises: | None - Design Specific, no options. (note: MDF products greater than 26" wide or 48" high will be made with two equal panels, unless otherwise specified.) |
