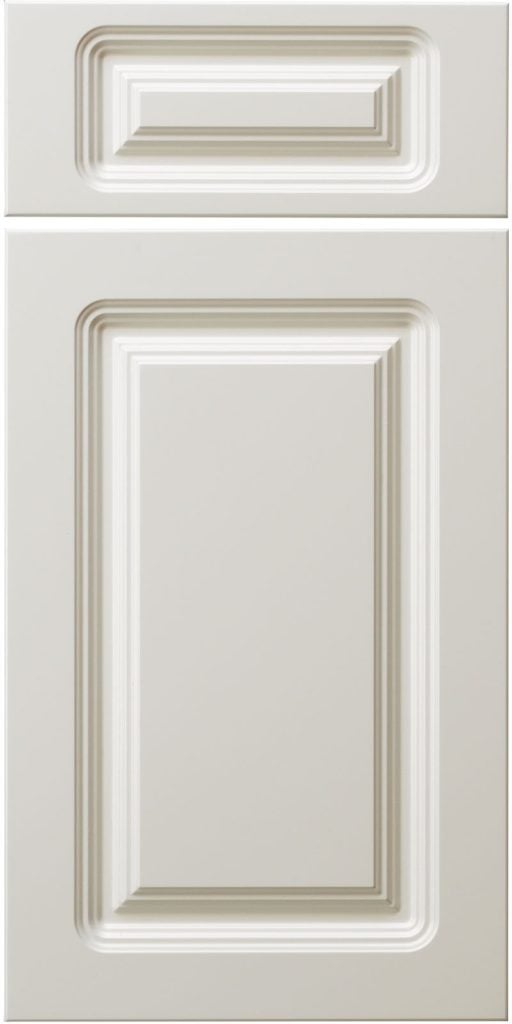

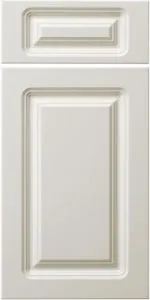

10RC3 (MDF)

If you have decided on a painted kitchen, but want with slightly more door design detail than the 10RC2, then consider the 10RC3 door. While similar in appearance, this door uses a wider symmetrical cutter shape, which increases the distance between the door frame and the panel raise areas of the door, all while being a solid one-piece MDF door. Note: inside corner of routed detail are not square, they are radiused. For squared corners, consider the SQ series of MDF doors.

  • Available in painted MDF using any of our Colortone (CWS) paints, custom Prism (Sherwin Williams) paint collection, or in Primer (customer to paint).
  • Also available in raw, unfinished (none – finished by customer) MDF.

The cross-section below is an example of how your door will look, but any profiles you choose will determine the final look of your door.

10RC3 Cross







Door Design 10RC3
Panel Raise Design Specific
Framing Bead Design Specific
Edge Profile L-149
Specie MDF
Finish Frosty White
Drawer Front Design 10RC3
Drawer Front Panel Raise Design Specific

Save

Available Profiles

Edge Profiles:B-2, C-2, H-2, L-034, L-059, L-149, L-253, L-382, L-686, L-803, L-1160, LC-2, ME (Machined Edge), PRS-2, & V-2.
Framing Beads:None - Design Specific, no options. (note: the RC series doors are radiused on the inside corners of the framing.)
Panels Raises:None - Design Specific, no options.

(note: MDF products greater than 26" wide or 48" high will be made with two equal panels, unless otherwise specified.)
Available Profiles PDF

Available Design Options

Mullion/Frame only Doors:Yes - Standard lite configurations only.
Wainscot Panels:Yes
Pegs and Grooves:No
Appliance Panels:Yes - Apply over plywood or 1/4" MDF panel.
Door Frame Modifications:Yes
Hinges/Hinge Boring:Yes - Hinge boring is automatic when ordered with RTA cabinets, but no hinging can be requested. If ordering doors only, hinging must be specified.
Design Options PDF

Available Drawer Fronts
