Edge Profiles For Overlay Doors – Hinge Borable

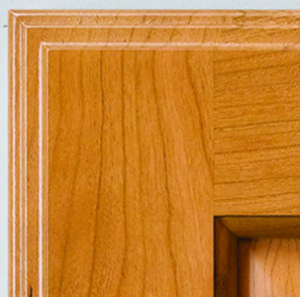

Overlay edge image taxonomy
  • The profiles below represent the standard (no charge) edge profiles that Conestoga offers WITH hinge boring (pattern A, B or C concealed cup boring) for OVERLAY doors. This is because the profile is shallow enough to allow the cup depth without the cup bore coming through the face of the edge profile.
  •  Note that many doors, including most mitered designs, have design specific edge profiles and the edges below are not applicable.
  • Note that L297 and LC-Inset are premium edge profiles and incur an additional charge of $15 per door/drawer




B2 CFP2 H2

L034 L149 L803

LC2 Machine Edge PRS2

V-2  L-297 (Premium)  LC-Inset (Premium)
L-1160
