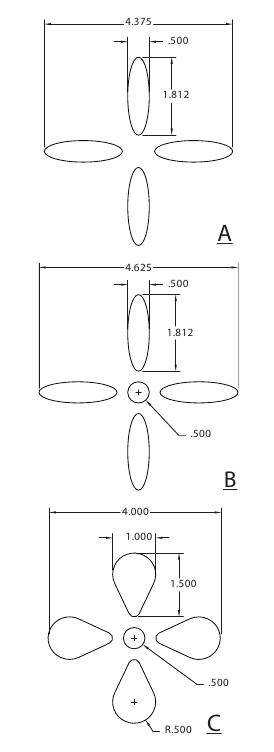

Decorative Panel Rout Option

  • Available in three rout patterns.
  • Available in solid wood and MDF.
  • Available panel thicknesses: 1/4”, 3/8”, 1/2”, and 5/8”.
  • Two location options:
    • Top of Panel: Rout will start 4” from inside of framing bead on top rail and will be centered in width of panel. Minimum inside opening is 7-5/8” x 7-5/8”.
    • Center of Panel: Rout will be centered in both height and width of panel. Minimum inside opening is 7-5/8” x 10-3/8”.
  • Inside of Decorative Panel Rout may be slightly rougher than panel face.
  • Available with all finishes.

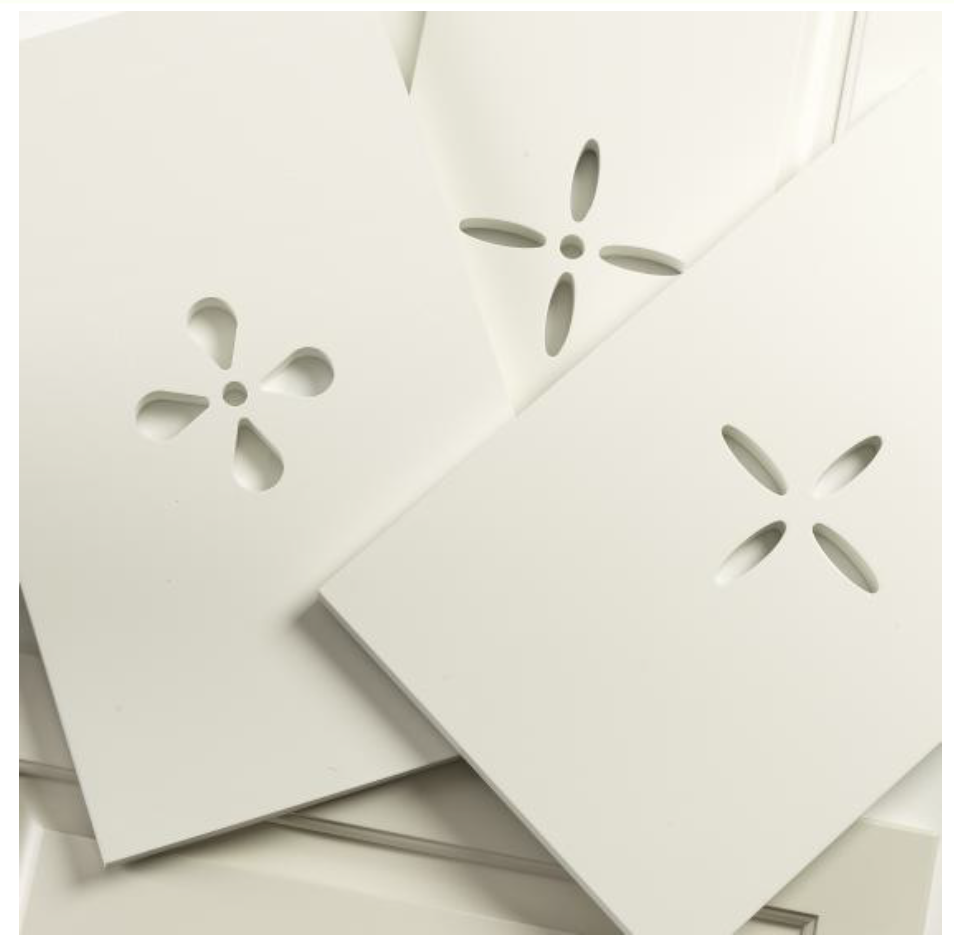

  • Picture shows L to R: Pattern C, Pattern B, Pattern A
