Tall Cabinets – Shallow

Shallow tall cabinets are perfect for book cases or for display storage. Don't forget, you can delete the doors from any cabinet and add features like arched top rails, finished interiors, beaded backs and flush toe kicks to create a true piece of furniture.

  • Utility Cabinet – Shallow (12-1/2″ Deep), Single Door

    Utility Cabinet – Shallow (12-1/2″ Deep), Single Door

    CABINET CODE: UC  (CSUC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UC + width  + height. IE: UC1884  for an a18″ wide x 84″ high cabinet. If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Single door over single door, bottom opening fixed at 56″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet – Shallow (12-1/2″ Deep), Butt Doors

    Utility Cabinet – Shallow (12-1/2″ Deep), Butt Doors

    CABINET CODE: UC_BD  (CSUC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UC + width  + height + BD. IE: UC3084BD  for an a 30″ wide x 84″ high cabinet. If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Butt doors over butt doors, bottom opening fixed at 56″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet-Shallow (12.5″ D), Double Doors

    Utility Cabinet-Shallow (12.5″ D), Double Doors

    CABINET CODE: UC  (CSUCCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UC + width  + height. IE: UC3084  for an a 30″ wide x 84″ high cabinet. If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Double doors w/center stile over  Double doors w/center stile, bottom opening fixed at 56″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet Wall Height – Shallow (12-1/2″ Deep)

    Utility Cabinet Wall Height – Shallow (12-1/2″ Deep)

    CABINET CODE: UCW (CSUCW will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12 ″ to 24″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UCW + width  + height. IE: UCW1284 for a 12″ wide x 84″ high cabinet. If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Single door over single door, bottom opening fixed at 48.5″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet Wall Height – Shallow (12-1/2″ Deep), Butt Doors

    Utility Cabinet Wall Height – Shallow (12-1/2″ Deep), Butt Doors

    CABINET CODE: UCW_BD  (CSUCW will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UCW + width  + height + BD. IE: UCW3084BD  for an a 30″ wide x 84″ high cabinet. If depth other than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Butt doors over butt doors, bottom opening fixed at 48.5″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet Wall Height – Shallow (12-1/2″ Deep), w/ Double Doors

    Utility Cabinet Wall Height – Shallow (12-1/2″ Deep), w/ Double Doors

    CABINET CODE: UCWCS  (CSUCWCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCWCS + width + height. IE: UCWCS3096 for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with double doors/center divider over double doors/center divider, lower opening is fixed at 48.5″, even as cabinet height increases. Separate toe platform available as option in all heights.

  • Other Room Shelf Cabinet – No doors

    Other Room Shelf Cabinet – No doors

    CABINET CODE: ORS (CSORS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 36″ Only
    Height: 84″ to 120″ in 1/16″ increments
    Depth: 5.5 to 27″ in 1/16″ increments

    TO ORDER: Indicate ORS + width + height. IE: ORS3084 for a 30 x 84″ cabinet. If different depth than standard 12.5″ is required, note as special instruction.

    DESCRIPTION: Tall cabinet with open shelving and no doors. 5-1/2″ high flush toe is standard/mandatory. Toe does not line up with desk base cabinets. Specify Matching interior option if you would like the interior to be finished to match exterior (not available in cabinets over 96″ tall)

Tall Cabinets – Deep

The powerhouse cabinet in your kitchen, tall pantry cabinets offer enormous amounts of storage and, when coupled with optional roll out trays, are efficient too.

  • Utility Cabinet – Deep (24″), Single Door

    Utility Cabinet – Deep (24″), Single Door

    CABINET CODE: UCD  (CSUC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCD + width + height. IE: UCD1896 for a 18 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with door over door, lower opening is fixed at 56″, even as cabinet height increases. Separate toe platform available as option in all heights.

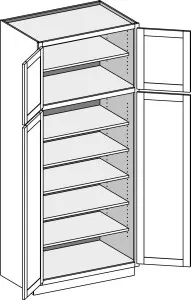

  • Utility Cabinet – Deep (24″) w/Butt Doors

    Utility Cabinet – Deep (24″) w/Butt Doors

    CABINET CODE: UCD_BD  (CSUC will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCD + width + height + BD. IE: UCD3096BD for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with butt doors over butt doors, lower opening is fixed at 56″, even as cabinet height increases. Separate toe platform available as option in all heights.

  • Utility Cabinet – Deep (24″) w/ Double Doors

    Utility Cabinet – Deep (24″) w/ Double Doors

    CABINET CODE: UCD  (CSUCCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCD + width + height. IE: UCD3096 for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with double doors/center divider over double doors/center divider, lower opening is fixed at 56″, even as cabinet height increases. Separate toe platform available as option in all heights.

  • Utility Cabinet Wall Height – Deep (24″)

    Utility Cabinet Wall Height – Deep (24″)

    CABINET CODE: UCWD  (CSUCWD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UCWD + width  + height. IE: UCWD1284 for a 12″ wide x 84″ high cabinet. If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Single door over single door, bottom opening fixed at 48.5″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet Wall Height – Deep (24″) w/Butt Doors

    Utility Cabinet Wall Height – Deep (24″) w/Butt Doors

    CABINET CODE: UCWD_BD  (CSUCWD will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate UCWD + width  + height + BD. IE: UCWD3084BD  for an a 30″ wide x 84″ high cabinet. If depth other than standard 24″ is required, note as special instruction.

    DESCRIPTION: Butt doors over butt doors, bottom opening fixed at 48.5″ even as height changes. 4″ separate toe platform option available.

  • Utility Cabinet Wall Height w/ Double Doors

    Utility Cabinet Wall Height w/ Double Doors

    CABINET CODE: UCDW  (CSUCWCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCDW + width + height. IE: UCDW3096 for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with double doors/center divider over double doors/center divider, lower opening is fixed at 48.5″, even as cabinet height increases. Separate toe platform available as option in all heights.

Tall Cabinets – Reverse

Reverse utility cabinets provide a unique and stylish alternative to the standard pantry cabinet. The larger upper doors allow for canned good storage while the lower doors line up with adjacent base cabinets, creating a clean look to your kitchen. Take a look at these cabinets and see if one is just one you need for you design!

  • Tall Cabinet – Deep (24″), Reverse w/Single Door

    Tall Cabinet – Deep (24″), Reverse w/Single Door

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: UCDR  (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCDR + width + height. IE: UCDR2496 for a 24 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with door over door, lower door aligns with base cabinets. Lower unit is fixed at 27.5″, even as cabinet height increases. Separate toe platform available as option in all heights. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Deep (24″), Reverse w/Butt Doors

    Tall Cabinet – Deep (24″), Reverse w/Butt Doors

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: UCDR_BD  (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCDR + width + height + BD. IE: UCDR3096BD for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with door over door, lower door aligns with base cabinets. Lower unit is fixed at 27.5″, even as cabinet height increases. Separate toe platform available as option in all heights.NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Deep (24″), Reverse w/Double Doors

    Tall Cabinet – Deep (24″), Reverse w/Double Doors

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: UCDR  (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCDR + width + height. IE: UCDR3096 for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with double doors/center divider , lower door aligns with base cabinets. Lower unit is fixed at 27.5″, even as cabinet height increases. Separate toe platform available as option in all heights. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Shallow, Reverse w/ Single Door

    Tall Cabinet – Shallow, Reverse w/ Single Door

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: UCR  (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCR + width + height. IE: UCR1596 for a 15 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 12.5″ deep is required.

    DESCRIPTION: Tall cabinet with door over door, lower door aligns with base cabinets. Lower unit is fixed at 27.5″, even as cabinet height increases. Separate toe platform available as option in all heights. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Shallow, Reverse w/Butt Doors

    Tall Cabinet – Shallow, Reverse w/Butt Doors

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: UCR _BD  (CSUCR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCR + width + height + BD. IE: UCR3096BD for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 12.5″ deep is required.

    DESCRIPTION: Tall cabinet with butt doors over butt doors, lower doors align with base cabinets. Lower unit is fixed at 27.5″, even as cabinet height increases. Separate toe platform available as option in all heights. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Shallow, Reverse w/Double Doors

    Tall Cabinet – Shallow, Reverse w/Double Doors

    NOTE: Available in Advantage Plywood Cabinet Only!

    CABINET CODE: UCR  (CSUCRCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 27″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth:  5.5″ to  30″ in 1/16″ increments

    TO ORDER: Indicate UCR + width + height. IE: UCR3096 for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 12.5″ deep is required.

    DESCRIPTION: Tall cabinet with double doors/center divider over double doors/center divider, lower doors align with base cabinets. Lower unit is fixed at 27.5″, even as cabinet height increases. Separate toe platform available as option in all heights. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

Tall Cabinets - With Drawers & Roll Outs

The best of two cabinets combined into one, utility cabinets with drawers allow you to use the upper portion for typical pantry storage while utilizing the bottom section for cutlery, place mats or whatever else you would rather have in a drawer. These are also great cabinets for creating hutches or unique design statements in your home. NOTE: Available in Advantage Plywood Cabinet Only!

  • Tall Cabinet – 3 Drawers, Single Door

    Tall Cabinet – 3 Drawers, Single Door

    CABINET CODE: U3D  (CSU3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27 and 30″ only

    TO ORDER: Indicate U3D + width + height. IE: U3D2496 for a 24 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with 3 drawers and single door. 3 drawers are in same configuration as a 3 drawer base cabinet. Lower drawer section aligns with 34-1/2″ high base cabinets. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

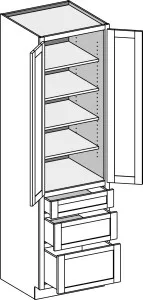

  • Tall Cabinet – 3 Drawers w/Butt Doors

    Tall Cabinet – 3 Drawers w/Butt Doors

    CABINET CODE: U3DBD  (CSU3D will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27 and 30″ only

    TO ORDER: Indicate U3D + width + height + BD. IE: U3D3096BD for a 30 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with 3 drawers and butt doors. 3 drawers are in same configuration as a 3 drawer base cabinet. Lower drawer section aligns with 34-1/2″ high base cabinets. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Reverse Roll Out

    Tall Cabinet – Reverse Roll Out

    CABINET CODE: UCDRRO  (CSUCDRRO will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    INSET CABINET CODE: CSUCRROI

    SIZES:
    Width: 12″ to 24″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27 and 30″ only

    TO ORDER: Indicate UCDRRO + width + height. IE: UCDRRO2496 for a 24 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with roll out drawers and 2 single doors.  Units are configured with four 5″ high drawer boxes. Interior panels are pre-drilled for drawer slide placement and installation. Roll-out drawers include hand pulls. Specify Standard, Circle or Ellipse (shown) pull. Lower drawer section aligns with 34-1/2″ high base cabinets. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Tall Cabinet – Reverse Roll Out w/Butt Doors

    Tall Cabinet – Reverse Roll Out w/Butt Doors

    CABINET CODE: UCDRROBD  (CSUCDRRO will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    INSET CABINET CODE: CSUCRROIBD

    SIZES:
    Width: 24″ to 36″ in 1/16″ increments
    Height: 84″ to 120″  in 1/16″ increments
    Depth: 12, 15, 18, 21, 24, 27 and 30″ only

    TO ORDER: Indicate UCDRRO + width + height + BD. IE: UCDRRO3696BD for a 36 wide x 96″ high cabinet. Specify as special instruction if any depth other than standard 24″ deep is required.

    DESCRIPTION: Tall cabinet with roll out drawers and 2 single doors.  Units are configured with four 5″ high drawer boxes. Interior panels are pre-drilled for drawer slide placement and installation. Roll-out drawers include hand pulls. Specify Standard, Circle or Ellipse (shown) pull. Lower drawer section aligns with 34-1/2″ high base cabinets. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

Tall cabinets - Oven

We offer a variety of oven/appliance cabinets designed to accommodate single ovens, oven/micro combination units, double ovens or even coffee makers. All oven cabinets are designed to have your installer trim the opening to allow for your appliances unique cutout.

  • Oven Cabinet – Double Oven, Type A w/Butt Doors

    Oven Cabinet – Double Oven, Type A w/Butt Doors

    CABINET CODE: ODA_BD (CSODA will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″, 27″ or 30″ only

    TO ORDER: Indicate ODA + width + height + BD. IE: ODA3096BD is for a 30 x 96 cabinet. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Oven cabinet for double oven application (USE ODB for oven/micro combo). Oven opening is 6″ less than cabinet width and trimmable by up to 3″. Opening height is 48″ and is trimmable by 5″. Oven opening is 14.5″ off floor. For custom configurations, consider the CSCO (custom size case only) with custom face frame. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Oven Cabinet – Double Oven, Type A w/Double Doors/Drawers

    Oven Cabinet – Double Oven, Type A w/Double Doors/Drawers

    CABINET CODE: ODA (CSODA will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″, 27″ or 30″ only

    TO ORDER: Indicate ODA + width + height. IE: ODA3096 is for a 30 x 96 cabinet. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Oven cabinet for double oven application (USE ODB for oven/micro combo). Oven opening is 6″ less than cabinet width and trimmable by up to 3″. Opening height is 48″ and is trimmable by 5″. Oven opening is 14.5″ off floor. For custom configurations, consider the CSCO (custom size case only) with custom face frame. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

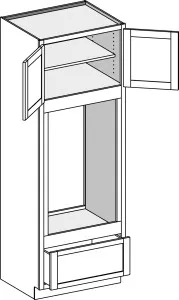

  • Oven Cabinet – Combo Oven, Type B w/ Butt Doors

    Oven Cabinet – Combo Oven, Type B w/ Butt Doors

    CABINET CODE: ODB_BD (CSODB will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″, 27″ or 30″ only

    TO ORDER: Indicate ODB + width + height + BD. IE: ODB3096BD is for a 30 x 96 cabinet. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Oven cabinet for combo oven/micro application (Use ODA for double oven combo). Oven opening is 6″ less than cabinet width and trimmable by up to 3″. Opening height is 39.5″ and is trimmable by 5″. Oven opening is 21″ off floor. For custom configurations, consider the CSCO (custom size case only) with custom face frame. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Oven Cabinet – Combo Oven, Type B w/Double Doors & Drawers

    Oven Cabinet – Combo Oven, Type B w/Double Doors & Drawers

    CABINET CODE: ODB (CSODB will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″, 27″ or 30″ only

    TO ORDER: Indicate ODB + width + height. IE: ODB3096 is for a 30 x 96 cabinet. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Oven cabinet for combo oven/micro application (Use ODA for double oven combo). Oven opening is 6″ less than cabinet width and trimmable by up to 3″. Opening height is 39.5″ and is trimmable by 5″. Oven opening is 21″ off floor. For custom configurations, consider the CSCO (custom size case only) with custom face frame. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Oven Cabinet – Single Oven w/Butt Doors

    Oven Cabinet – Single Oven w/Butt Doors

    CABINET CODE: OS_BD (CSOS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″, 27″ or 30″ only

    TO ORDER: Indicate OS + width + height + BD. IE: OS3096BD is for a 30 x 96 cabinet. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Oven cabinet for single oven. (Use ODA or ODB for double oven or combo oven applications). Oven opening is 6″ less than cabinet width and trimmable by up to 3″. Opening height is 39.5″ and is trimmable by 5″. Oven opening is 33.5″ off floor. For custom configurations, consider the CSCO (custom size case only) with custom face frame. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Oven Cabinet – Single Oven w/Double Doors

    Oven Cabinet – Single Oven w/Double Doors

    CABINET CODE: OS (CS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″, 27″ or 30″ only

    TO ORDER: Indicate OS + width + height. IE: OS3096 is for a 30 x 96 cabinet. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Oven cabinet for single oven. (Use ODA or ODB for double oven or combo oven applications). Oven opening is 6″ less than cabinet width and trimmable by up to 3″. Opening height is 39.5″ and is trimmable by 5″. Oven opening is 33.5″ off floor. For custom configurations, consider the CSCO (custom size case only) with custom face frame. NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

Tall Cabinets - Refrigerator

Refrigerator cabinets provide a built in look for your fridge by integrating the side panels into the upper cabinet box. Take note though, because the panels are part of the overall cabinet width, so always order the cabinet that allows for your fridge width! For instance, a 36" wide fridge would require a 39" wide fridge cabinet.

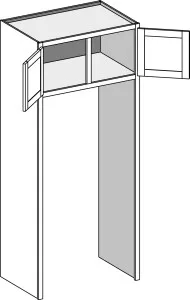

  • Refrigerator Tall – Double Side Panels, Butt Doors

    Refrigerator Tall – Double Side Panels, Butt Doors

    CABINET CODE: RTB _BD (CSRTB will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  27″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTB + width + UPPER cabinet height + TOTAL height  + BD. IE: RTB361284BD is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated side panels, butt doors. Cabinet will accommodate a fridge 3″ smaller than the cabinet width (IE: an RTB361284BD will allow a 33″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Tall – Double Side Panels, Double Doors

    Refrigerator Tall – Double Side Panels, Double Doors

    CABINET CODE: RTB (CSRTBCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized, Center Stile)

    SIZES:
    Width:  30″ to 48″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTB + width + UPPER cabinet height + TOTAL height  + BD. IE: RTB361284 is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated side panels, butt doors. Cabinet will accommodate a fridge 3″ smaller than the cabinet width (IE: an RTB361284 will allow a 33″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet - Double Side Panels w/HK-XS Lift System

    Refrigerator Cabinet - Double Side Panels w/HK-XS Lift System

    CABINET CODE: RTBHKXS (CSRTBHKXS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  30″ to 39″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTBHKXS + width + UPPER cabinet height + TOTAL height  + BD. IE: RTBHKXS361284 is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated side panels, single door with lift kit. Cabinet will accommodate a fridge 3″ smaller than the cabinet width (IE: an RTBHKXS361284 will allow a 33″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet – Left Side Panel, Butt Doors

    Refrigerator Cabinet – Left Side Panel, Butt Doors

    CABINET CODE: RTL_BD (CSRTL will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  30″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTL + width + UPPER cabinet height + TOTAL height + BD. IE: RTL361284BD is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated LEFT side panel, Butt doors. Cabinet will accommodate a fridge 1.5″ smaller than the cabinet width (IE: an RTL361284BD will allow a 34.5″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet – Left Side Panel, Double Doors

    Refrigerator Cabinet – Left Side Panel, Double Doors

    CABINET CODE: RTL (CSRTLCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized, Center Stile)

    SIZES:
    Width:  30″ to 48″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTL + width + UPPER cabinet height + TOTAL height. IE: RTL361284 is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated LEFT side panel, double doors with center stile. Cabinet will accommodate a fridge 1.5″ smaller than the cabinet width (IE: an RTL361284 will allow a 34.5″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet - Left w/HK-XS Lift System

    Refrigerator Cabinet - Left w/HK-XS Lift System

    CABINET CODE: RTLHKXS (CSRTLHKXS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  30″ to 39″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTLHKXS + width + UPPER cabinet height + TOTAL height  + BD. IE: RTLHKXS361284 is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated LEFT side panel, single door with lift kit. Cabinet will accommodate a fridge 1.5″ smaller than the cabinet width (IE: an RTLHKXS361284 will allow a 34.5″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet – Right Side Panel, Butt Doors

    Refrigerator Cabinet – Right Side Panel, Butt Doors

    CABINET CODE: RTR_BD (CSRTR will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  30″ to 36″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTR + width + UPPER cabinet height + TOTAL height + BD. IE: RTR361284BD is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated RIGHT side panel, Butt doors. Cabinet will accommodate a fridge 1.5″ smaller than the cabinet width (IE: an RTL361284 will allow a 34.5″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet – Right Side Panel, Double Doors

    Refrigerator Cabinet – Right Side Panel, Double Doors

    CABINET CODE: RTR (CSRTRCS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized, Center Stile)

    SIZES:
    Width:  30″ to 48″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTR + width + UPPER cabinet height + TOTAL height. IE: RTR361284 is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated RIGHT side panel, double doors with center stile. Cabinet will accommodate a fridge 1.5″ smaller than the cabinet width (IE: an RTR361284 will allow a 34.5″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

  • Refrigerator Cabinet - Right w/HK-XS Lift System

    Refrigerator Cabinet - Right w/HK-XS Lift System

    CABINET CODE: RTRHKXS (CSRTRHKXS will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  30″ to 39″ in 1/16″ increments
    Height: 84 to 120″ in 1/16″ increments.
    Depth: 24″ to 30″ in 1/16″ increments

    TO ORDER: Indicate RTRHKXS + width + UPPER cabinet height + TOTAL height  + BD. IE: RTRHKXS361284 is for a 36 x 84 cabinet with a 12″ high upper cabinet section. Indicate depth in special instructions. 24″ is standard unless specified.

    DESCRIPTION: Refrigerator cabinet with integrated RIGHT side panel, single door with lift kit. Cabinet will accommodate a fridge 1.5″ smaller than the cabinet width (IE: an RTRHKXS361284 will allow a 34.5″ wide fridge space). NOTE: Cabinets over 96″ are available with FLUSH ENDS ONLY!

Tall Cabinets - Corner Hutch

The corner hutch offers a decorative accent piece for your kitchen or even you living or dining room. Consider using a complimenting but different wood or finish to make this piece become a furniture 'accent' in your home.

  • Tall Corner Hutch

    Tall Corner Hutch

    CABINET CODE: TCH_BD  (CSTCH will appear on your quote if your cabinet is not one of the standard sizes – CS = Custom Sized)

    SIZES:
    Width:  24″, 27″ and 30″ only
    Height: 84 to 120″ in 1/16″ increments
    Depth: 24″, 27″ and 30″ only

    TO ORDER: Indicate TCH + width + height  + BD. IE: TCH2484BD for a 24 x 24 x 84 H cabinet.

    DESCRIPTION: Tall corner hutch with upper and lower door sections.

Custom Sized Case Only

The Custom Sized case only allows you to design unique cabinet configurations by applying a custom frame/doors/drawer fronts/drawer boxes to a cabinet 'case'. This flexibility grants you the capacity to make dressers, entertainment units, lockers, closets and other unique cabinetry, all using this 'Case Only' cabinet as the basis.

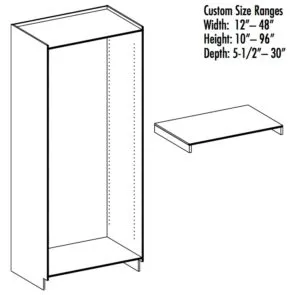

  • Custom Sized Case Only – NO shelf holes

    Custom Sized Case Only – NO shelf holes

    CABINET CODE: CSCONH

    SIZES
    Width: 12″ thru 48″ in 1/16″ increments
    Height: 10 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate CSCONH + the cabinet width  + cabinet height. IE: CSCONH1490 for a 14 W x 90 H cabinet. Indicate depth in Special Instructions. Specify the number of loose ‘floor kits’ you will need. Typically, anywhere you need a ‘floor’ in a cabinet opening (not including the top and bottom). Floor kits are installed by customer behind horizontal face frame separation pieces.

    DESCRIPTION: Cabinet case (no frame or doors). SHELVES NOT INCLUDED and no holes bored to receive any shelf pins!

  • Custom Sized Case Only w/Shelf Holes

    Custom Sized Case Only w/Shelf Holes

    CABINET CODE: CSCO

    SIZES
    Width: 12″ thru 48″ in 1/16″ increments
    Height: 10 to 120″ in 1/16″ increments
    Depth: 5.5 to 30″ in 1/16″ increments

    TO ORDER: Indicate CSCO + the cabinet width  + cabinet height. IE: CSCO1490 for a 14 W x 90 H cabinet. Indicate depth in Special Instructions. Specify the number of loose ‘floor kits’ you will need. Typically, anywhere you need a ‘floor’ in a cabinet opening (not including the top and bottom). Floor kits are installed by customer behind horizontal face frame separation pieces.

    DESCRIPTION: Cabinet case (no frame or doors) only with shelf holes. SHELVES NOT INCLUDED.
