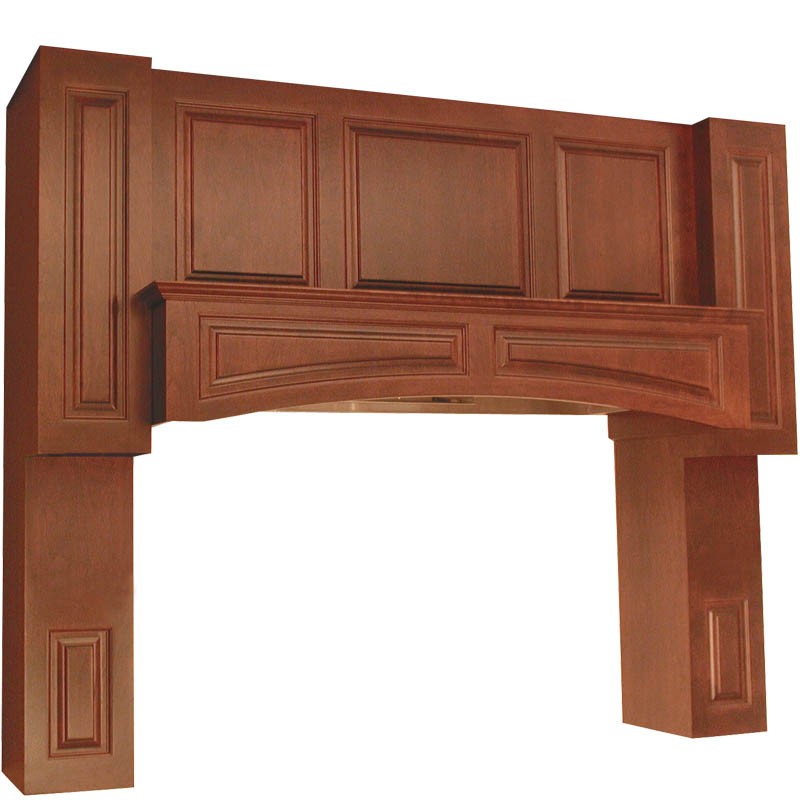

W-Raised Arched Hood w/Display Shelf

W-Raised-Arch-Range-Hood
  • Profile options – Framing Bead: Regular, Ogee or Square.
  • Panel Raise: Slant, G-Cove, RM, M-Bead or P-057.

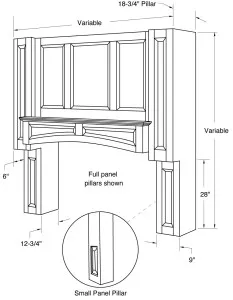

  • Specify full panel or small panel pillars. Small panel pillars can accommodate corbels up to 9″ wide, 10-1/2″ high and 6″ deep.
  • 30″ clearance between bottom of pillar and bottom of arched panel.
  • Display shelf depth is 8-1/8″ deep.
  • Ships in four pieces, ready to assemble.
  • Spice Rack Pull Out option includes racks in both left and right pillars; $725 upcharge applies.
  • Spice rack dimensions: 26″ high x 10-3/4″ wide.
  • Removable panel standard – must request fixed panel.
  • Available in: Maple, Paint Grade Maple, MDF, Red Oak, White Oak, Quarter Sawn Red & White Oak, Rift Cut White Oak, Hickory, Cherry, Alder, Rustic Alder, Walnut

Available Sizes

Available Sizes:

60″ High 72″ High 84″ High
66 x 60 66 x 72 66 x 84
72 x 60 72 x 72 72 x 84
84 x 60 84 x 72 84 x 84
90 x 60 90 x 72 90 x 84
